Juniper Networks ACX5048
Universal Metro Router


Juniper Networks ACX5048

Juniper Products
ACX Series Universal Access Routers

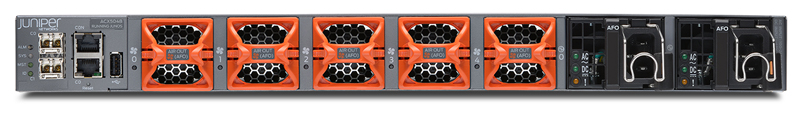

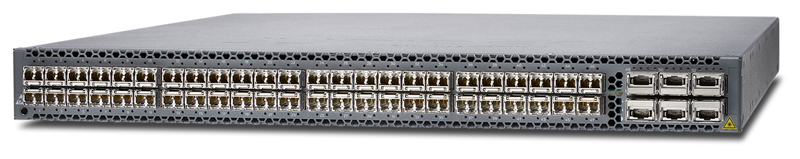

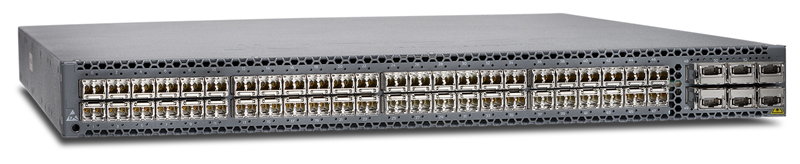

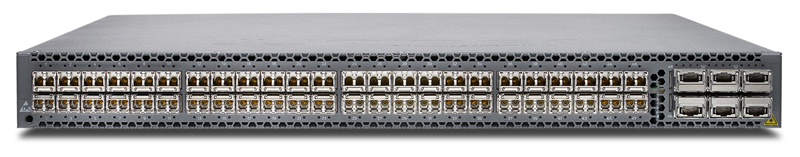

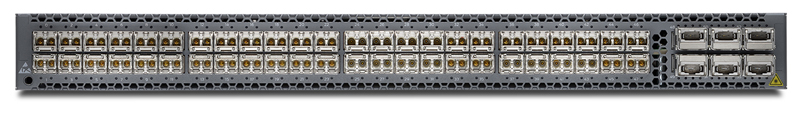

ACX5048 48-port SFP+/SFP Universal Metro Router, AC Version
48 SFP+/SFP ports, 6 QSFP ports, redundant fans and AC power supplies; No right to use IP-VPN
#ACX5048-AC-L2-L3
List Price: $38,955.00
Our Price: $31,358.78
Call For Lowest Price!
ACX5048 48-port SFP+/SFP Universal Metro Router, DC Version
48 SFP+/SFP ports, 6 QSFP ports, redundant fans and DC power supplies; No right to use IP-VPN
#ACX5048-DC-L2-L3
List Price: $38,955.00
Our Price: $31,358.78
Call For Lowest Price!

Click here to jump to more pricing!

Overview:

The ACX5400 line of Universal Metro Routers is ideal for Ethernet service aggregation and packet-optical convergence. Offering GbE, 10GbE, 25GbE, and 100GbE connectivity options in a 1 U footprint, the ACX5400 line gives you the flexibility to create high-density networks with the interfaces you need to support your unique traffic demands.

Choose between Ethernet aggregation, Ethernet aggregation with MACsec encryption, and Ethernet aggregation plus packet-optical convergence. This configuration flexibility allows you to build a 100GbE infrastructure even in environments where rack space for networking devices and cooling systems is limited.

Aggregate Multiple Services with High Availability

Built with metro service aggregation in mind, the ACX5400 line features 100GbE interfaces for network-to-network interface (NNI) uplinks. It fully supports E-Line, E-LAN, E-Tree, and E-Access, as well as IP-over-IP VPN services. The router supports your business with high-availability networking features such as unified in-service software upgrades (ISSU) and the Junos operating system for consistent delivery of mission-critical voice and video traffic.

The ACX5400 line also offers service virtualization on a dedicated, customizable, kernel-based virtual machine (KVM). The KVM executes operational scripts and programs for network performance monitoring and analysis.

High-Density Networking in Space-Challenged Environments

With the ACX5400 line, you can build high-density telco infrastructures that are both efficient and scalable. For sites with rack space limitations, these 1 U platforms support up to 48 GbE or 10GbE ports, up to 16 25GbE ports (via QSFP28 breakout), and up to six 100GbE ports. The packet-optical convergence version provides two 100/200G CFP2 DCO line-side ports for easy and highly flexible multilayer deployments.

The ACX5400 line satisfies the growing demand for access network capacity, fueled by a new generation of Gigabit-capable Passive Optical Networks (GPON), 4G/5G wireless base stations, and 10GbE user-to-network interface (UNI) service demands from business and residential customers.

The router’s 100-Gbps NNI ports deliver ample capacity for aggregation uplinks. Combine them with software capabilities designed for business, direct Internet, direct public cloud, residential fiber, and mobile backhaul and access networks for an optimal metro access and aggregation solution.

Using the Junos OS and Junos SDK, the ACX5400 line is fully customizable to meet your specific needs. Its scalability and reliability improve the user experience and lowers the cost associated with maintaining and updating your network infrastructure.

Product Description

The Juniper Networks ACX5000 line of Universal Metro Routers is a response to a shift in metro network architectures where the access and aggregation layers are extending operational intelligence from the service provider edge to the access network. The ACX5000 line simplifies access and aggregation architectures by eliminating unnecessary layers and network overlays, dramatically reducing CapEx and OpEx. Based on architectural simplification and cost reduction, the ACX5000 line gives service providers and enterprises the ability to adopt a true universal metro paradigm. The ACX5000 line also provides high capacity, scalability, and a packet optical transport layer, while delivering industry-leading performance with a wide range of port densities and interface types. Table 1 provides an overview of the interfaces supported on each ACX5000 model.

ACX5000 Line Product Family
Juniper Networks ACX Series Universal Metro Routers offer a wide range of metro solutions, including the ACX500, ACX1000, ACX2000, ACX4000, ACX5000, and ACX6000 lines. The ACX5000 line includes five models.

  • ACX5048: The ACX5048 provides full duplex throughput of 1.44 Tbps in a 1 U platform. Built to handle 1GbE/10GbE capacity and density, it supports 48 1GbE/ 10GbE and six 40GbE interfaces, making it ideal for Metro Ethernet access and aggregation deployments with full support of E-Line, E-LAN, E-Tree, and E-Access, as well as IP/IP VPN services.
  • ACX5096: The ACX5048 provides full duplex throughput of 1.44 Tbps in a 1 U platform. Built to handle 1GbE/10GbE capacity and density, it supports 48 1GbE/ 10GbE and six 40GbE interfaces, making it ideal for Metro Ethernet access and aggregation deployments with full support of E-Line, E-LAN, E-Tree, and E-Access, as well as IP/IP VPN services.
  • ACX5448: The ACX5448 offers 48 1GbE/10GbE aggregation ports, four highcapacity 40GbE/100GbE uplink ports, and full Metro Ethernet and IP/MPLS VPN services in a space- and cost-optimized platform, smoothing the transition from 10GbE to 100GbE for service providers preparing for the emerging 5G rollout.
  • ACX5448-D: The ACX5448-D supports 36 1GbE/10GbE, two 40GbE/100GbE, and two 100G/200G dense wavelength-division multiplexing (DWDM) ports using CFP2- DCO. It is designed for packet-optical convergence to reduce TCO and to help service providers prepare for the emerging 5G rollout.
  • ACX5448-M: The ACX5448-M supports 44 1GbE/10GbE and six 40GbE/100GbE ports, as well as advanced security capabilities such as Media Access Control Security (MACsec) on all 1GbE/10GbE ports.

Pricing Notes:

Juniper Products
ACX Series Universal Access Routers
ACX5048 48-port SFP+/SFP Universal Metro Router, AC Version
48 SFP+/SFP ports, 6 QSFP ports, redundant fans and AC power supplies; No right to use IP-VPN
#ACX5048-AC-L2-L3
List Price: $38,955.00
Our Price: $31,358.78
Call For Lowest Price!
ACX5048 48-port SFP+/SFP Universal Metro Router, DC Version
48 SFP+/SFP ports, 6 QSFP ports, redundant fans and DC power supplies; No right to use IP-VPN
#ACX5048-DC-L2-L3
List Price: $38,955.00
Our Price: $31,358.78
Call For Lowest Price!
Juniper Care for ACX5048
Juniper Care Core Support for ACX5048
#SVC-COR-ACX5048
List Price: $1,296.00
Our Price: $1,101.60
Juniper Care Core Plus Support for ACX5048
#SVC-CP-ACX5048
List Price: $1,635.00
Our Price: $1,389.75
Juniper Care Next Day Support for ACX5048
#SVC-ND-ACX5048
List Price: $1,879.00
Our Price: $1,597.15
Juniper Care Next Day Onsite Support for ACX5048
#SVC-NDCE-ACX5048
List Price: $2,461.00
Our Price: $2,091.85
Juniper Care Same Day Support for ACX5048
#SVC-SD-ACX5048
List Price: $3,120.00
Our Price: $2,652.00
Juniper Care Same Day Onsite Support for ACX5048
#SVC-SDCE-ACX5048
List Price: $3,908.00
Our Price: $3,321.80
Fixed Software
ACX5K Right to Use IP-VPN
#ACX5K-L-IPVPN
List Price: $5,565.00
Our Price: $4,479.83
ACX5K Right to use a single 10GE port on ACX5K system; enforceable per ACX5K system
#ACX5K-L-1X10GE-S
List Price: $2,310.00
Our Price: $1,859.55
ACX5K Right to use 8 10GE ports on ACX5K system; enforceable per ACX5K system
#ACX5K-L-8X10GE-S
List Price: $17,850.00
Our Price: $14,369.25
ACX5K Right to use 16 10GE ports on ACX5K system; enforceable per ACX5K system
#ACX5K-L-16X10GE-S
List Price: $35,700.00
Our Price: $28,738.50
Call For Lowest Price!
ACX5K Right to use 24 10GE ports on ACX5K system; enforceable per ACX5K system
#ACX5K-L-24X10GE-S
List Price: $53,445.00
Our Price: $43,023.23
Call For Lowest Price!
