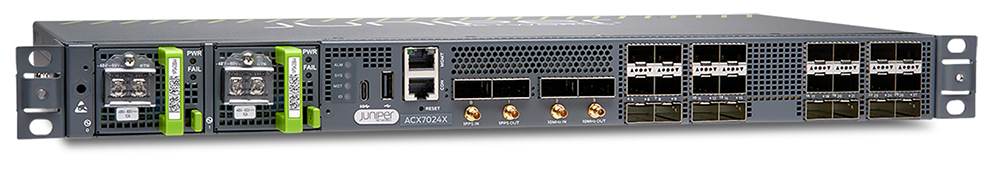

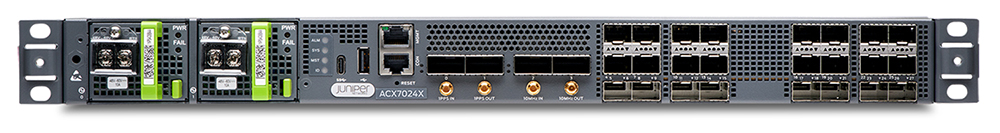

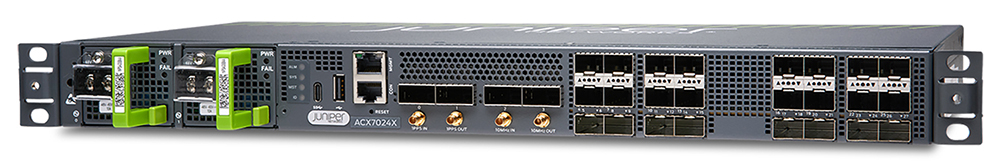

Juniper Networks ACX7024X
Cloud Metro Router
Click here to jump to more pricing!
Overview:
Operators are finding opportunities and facing challenges to support new and complex services and applications with 5G, IoT, and cloud—all while keeping experience-first networking in mind. The ACX7000 family platforms can help operators thrive. The ACX7024 and ACX7024X are fixed, 360 Gbps, 1 U (24 cm deep) multiservice routers, powered by Junos OS Evolved and Paragon Automation. They provide 1GbE to 100GbE port flexibility and delivers exceptional TCO, investment protection, and multiservice support for service provider, enterprise, and wholesale use cases. Its compact footprint and precision timing support make the ACX7024 and ACX7024X ideal for 4G/5G mobile network deployments.
The Juniper Networks ACX7000 family of Cloud Metro Routers is designed to help operators achieve their capital, operational, and user experience goals. Part of the Juniper Networks ACX7000 family of routers, the ACX7024 and ACX7024X deliver exceptional TCO, investment protection, and support Juniper® Cloud Metro for 5G, Internet of Things (IoT), and cloud applications. These routers are ideal for service provider, enterprise, and residential use cases requiring a highly flexible, compact, multiservice, and environmentally industrial-rated platform.
ACX7000 Family Overview
ACX7000 family of routers is purpose-built for the IP service fabric underlay of a Juniper Cloud Metro. They leverage the industry’s fastest chipset, provide a unique balance of system design, and set new benchmarks for sustainable, high-performance platforms. Managed by Junos® OS Evolved and Juniper Paragon™ Automation Portfolio, the ACX7000 routers are embedded with Paragon Active Assurance and with Zero Trust security built in, enabling operators to deliver highly differentiated customer experiences. Available in environmentally industrial-rated, fixed, fixed plus modular, and fully modular designs, these energy and footprint efficient multiservice routers support high-precision timing technologies and are engineered for service provider, enterprise, residential (including PON with the Juniper Unified PON Solution), IoT, and 4G/5G mobile applications.
Individually, ACX7000 platforms bring leading-edge performance, scale, and capability to any deployment. When building a comprehensive Juniper Cloud Metro architecture consisting of multiple ACX7000 family platforms, new dimensions of end-to-end operational capability, performance, and simplicity are realized. Forming the foundation of an IP service fabric underlay, the ACX7000 family of routers shares innovative features that elevate operations and enable the core characteristics of a Cloud Metro.
Product Offering

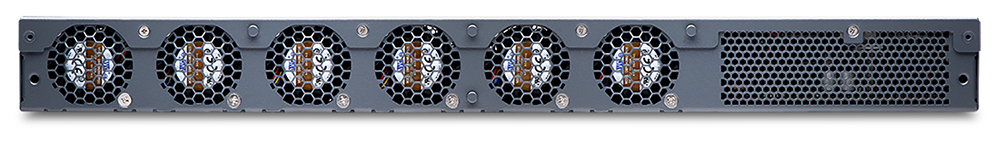

ACX7024 and ACX7024X, from the ACX7000 family, are compact, fixed, 1 U (24 cm deep), high-performance multiservice routers. Designed for Cloud Metro deployments in industrial and commercial temperature environments, both routers incorporate 6 integrated fans (5+1 redundancy) for front-to-back airflow. They come with 2x field replaceable AC or DC power supplies (1+1 redundancy). Cost-effective and efficient thermal design enables usage of high-power 100GbE ZR transceivers on all supporting ports. They incorporate precision- timing capabilities, including advanced Class C timing for low- latency 5G services and GPS/GNSS (Global Navigation Satellite System) transceiver for best-in-class network experience. They support next-generation protocols, including segment routing, SRv6, MPLS, and Ethernet VPN (EVPN)–Virtual Extensible LAN (VXLAN), and any overlay, underlay, or service. They deliver service-assured network slicing, network intelligence, and Juniper Paragon Automation for network efficiency and operational simplicity.
The ACX7024 and ACX7024X routers share identical features and capabilities while providing operators with key differentiators to fit the exacting needs of each deployment. The ACX7024 is designed to work in less-than-desirable, industrial-temperature applications. The ACX7024X, with its 8C processor and 64MB of RAM, provides high-scale and low-latency capabilities in commercial-temperature applications.
ACX7024: The ACX7024 is an industrial-rated (I-Temp) multiservice router. Next-generation silicon delivers 360 Gbps of throughput, a comprehensive feature set, and the scale needed to support today’s and tomorrow’s performance and bandwidth requirements. The ACX7024 router’s fixed ports include 24 multi-rate (SFP28) ports, each configurable as 1GbE, 10GbE, and 25GbE, enabling operators to perform today’s most common upgrades on a port-by-port basis. An additional 4 fixed (QSFP-28) 100GbE uplinks are available to support scale.
ACX7024X: The ACX7024X is a commercial-rated (C-Temp), high-scale multiservice router. Key highlights are next-generation silicon that delivers 360 Gbps of throughput, a comprehensive feature set, a more powerful processor, 4 times the memory for high-scale environments, a higher FIB scale, and faster look-ups. All these features help operators and enterprises meet the needs of high-performance bandwidth requirements today and tomorrow. The ACX7024X router fixed ports include 24 multi-rate (SFP28) ports, each configurable as 1GbE, 10GbE, and 25GbE, enabling operators to perform today’s most common upgrades on a port-by-port basis. An additional 4 fixed (QSFP-28) 100GbE uplinks are available to support scale.
Pricing Notes:
- Pricing and product availability subject to change without notice.
List Price:
Our Price: $1,539.35
List Price:
Our Price: $1,731.45
List Price:
Our Price: $1,924.40
List Price:
Our Price: $2,405.50
List Price:
Our Price: $3,078.70
List Price:
Our Price: $3,847.95
