Juniper Networks ACX7332
Cloud Metro Router

Overview:

Network operators are finding incredible opportunities with 5G, IoT, and cloud, along with daunting challenges to support new and increasingly complex services and applications while striving to deliver experience-first networking. In this environment, ACX7000 family platforms help operators thrive. Powered by Junos OS Evolved and Juniper Paragon Automation, the ACX7300 line of Cloud Metro routers is hardened, compact, fixed plus modular, 3U solutions that deliver 2.4 Tbps of throughput supporting 1GbE to 400GbE flexibility. They deliver exceptional TCO, investment protection, and multiservice support for service provider, enterprise, and wholesale use cases. Compact footprint and precision timing makes the ACX7300 line ideal for 4G/5G mobile deployments.

The Juniper Networks ACX7300 line of Cloud Metro routers is designed to help operators achieve their capital, operational, and user experience goals. Part of the Juniper Networks ACX7000 family portfolio, ACX7300 routers are Juniper® Cloud Metro-ready for 4G/5G, Internet of Things (IoT), and cloud-based applications. They are designed for metro access and aggregation, large enterprise, and residential use cases requiring a highly flexible (1GbE to 400GbE), compact (29-cm-deep), 3U, multiservice, and multi-environmental rated platforms. Whether your network demands are temperature-dependent or high-scale, the industrial-temperature (I-Temp)-rated ACX7348 or extended-temperature (E-Temp)-rated and external ternary content addressable memory (eTCAM)-enabled ACX7332 can fit your Cloud Metro requirements today and into the future.

ACX7000 Family Overview

ACX7000 family of routers is purpose-built for the IP service fabric underlay of a Juniper Cloud Metro. They leverage the industry’s fastest chipset, provide a unique balance of system design, and set new benchmarks for sustainable, high-performance platforms. Managed by Junos® OS Evolved and Juniper Paragon™ Automation Portfolio, the ACX7000 routers are embedded with Paragon Active Assurance and with Zero Trust security built in, enabling operators to deliver highly differentiated customer experiences. Available in environmentally industrial-rated, fixed, fixed plus modular, and fully modular designs, these energy and footprint efficient multiservice routers support high-precision timing technologies and are engineered for service provider, enterprise, residential (including PON with the Juniper Unified PON Solution), IoT, and 4G/5G mobile applications.

Individually, ACX7000 platforms bring leading-edge performance, scale, and capability to any deployment. When building a comprehensive Juniper Cloud Metro architecture consisting of multiple ACX7000 family platforms, new dimensions of end-to-end operational capability, performance, and simplicity are realized. Forming the foundation of an IP service fabric underlay, the ACX7000 family of routers shares innovative features that elevate operations and enable the core characteristics of a Cloud Metro.

Product Offering

The ACX7300 line is hardened, compact 3U (29cm deep), fixed plus modular platforms (supporting three I/O bays) that deliver high-performance access and aggregation routing optimized for space, power, and value. Next-generation silicon delivers 2.4 Tbps of throughput, a comprehensive feature set, exceptional 50GbE density (32 ports in 3U), and Media Access Control Security (MACsec) with support across all port speeds (1GbE to 400GbE). Combine these foundational capabilities with exceptional scale and highly flexible, build-as-you-grow port configuration and operators are equipped to evolve network protocols and features at their own pace. At the same time, they can support today’s most common transport upgrades without a platform forklift.

Resiliency and precision timing are also key attributes of the ACX7300 line and its role in Cloud Metro deployments. An optional, second routing engine (RE) card can be added to both platforms, enabling quick switchover from the active RE to the standby RE to prevent service interruption. The ACX7300 line supports up to eight fan trays (N+1 redundancy), four of which are field replaceable. Equipped with two –field-replaceable AC or DC power supplies (1+1 redundancy), a cost-effective and efficient thermal design enables unrestricted high-power ZR/ZR+ use across all supporting ports. Precision timing capabilities, including Class C timing and an integrated Global Navigation Satellite System (GNSS) , facilitate low latency services and dependable networking synchronization for consistent and reliable user experiences. The ACX7300 line supports next-generation protocols, including SR, SRv6, MPLS, Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN), and any overlay, underlay, or service. They deliver service-assured network slicing, network intelligence, and Juniper Paragon Automation for network efficiency and operational simplicity.

The ACX7332 and ACX7348 share identical features and capabilities while providing operators with key differentiators to fit the exacting needs of each deployment. The ACX7332 design includes onboard, eTCAM-enhanced scale and latency for E-Temp applications while the ACX7348 delivers 16 additional fixed ports for I-Temp applications.

ACX7332: The E-Temp-rated ACX7332 delivers high-end, eTCAM-enhanced, multiservices in a 3U, fixed plus modular, compact (29 cm deep), power-efficient footprint. It provides 2.4 Tbps forwarding capacity and supports 32 fixed multirate (SFP28) ports, each configurable as 1GbE, 10GbE, and 25GbE client services, enabling operators to perform today’s most common transport upgrades on a port-by-port basis without a platform forklift. An additional eight fixed (QSFP-28) ports support 100GbE (ZR capable) uplinks.

ACX7300 platforms have three I/O bays that provide support for optional interface modules covering a range of port speeds, one I/O bay delivers an additional 400 Gbps of capacity capable of supporting speeds from 1GbE to 100GbE. The other two I/O bays each provide an additional 800 Gbps of capacity capable of supporting port speeds from 10GbE to 400GbE. Integrated eTCAM technology facilitates the highest FIB scale, quicker lookups, and lower latency performance.

ACX7348: The I-Temp-rated ACX7348 delivers multiservices in the same 3U, fixed plus modular, compact (29 cm deep), power efficient footprint. It also provides 2.4 Tbps forward capacity, 48 fixed multirate (SFP28) ports, each configurable as 1GbE, 10GbE, and 25GbE client services, and eight additional fixed (QSFP-28) ports of 100GbE (ZR capable) uplinks. Three I/O bays support the same optional interface modules), one I/O bay delivering 400 Gbps of capacity supporting 1GbE to 100GbE port speeds. Two other I/O bays provide 800 Gbps of capacity each, supporting 10GbE to 400GbE ports speeds. Exceptional scale provides low-latency, high FIB and platform performance.

ACX7300 Interface Modules: The following modules can be used on both ACX7300 line platforms. Each module’s capability will be dependent on whether the module is used within one of the two 800 Gbps I/O bays or in the 400 Gbps I/O bay as noted.

• 16 ports, multi-rate 50GbE (SFP56) interface module, port-by-port configurable as 1GbE, 10GbE, 25GbE, and 50GbE NOTE: This capability applies when this interface module is used in either of the two 800 Gbps I/O bays. When used in the 400 Gbps I/O bay, optional native port speeds are 1GbE, 10GbE, and 25GbE.
• Four ports of 100GbE (QSFP28) and two ports of 400GbE (QSFP56) interface modules
  NOTE: This capability applies when this interface module is used in either of the two 800 Gbps I/O bays. When used in the 400 Gbps I/O bay, top port speed is 100GbE.

Features and Benefits:

The Cloud Metro-ready ACX7300 line is engineered for sustainability. It addresses the challenges of evolving service requirements and the relentless traffic growth imposed by the 4G/5G, IoT, and cloud applications, turning them into opportunities for operators to thrive.

Feature	Benefits
Junos OS Evolved and Embedded Active Assurance	Managed by Junos OS Evolved, Juniper Paragon Active Assurance Test Agents are embedded into all ACX7000 platforms enabling automated monitoring, diagnosis, remediation, and optimization of service delivery, service performance, and differentiated user experience.
Rugged and Efficient Design	The compact footprint (3U, 29cm deep, 19-inch rack) of ACX7300 platforms, the I-Temp-rated (-40º C to +65º C) ACX7348, and the E-Temp-rated (0º C to 55º C) ACX7332, support a variety of deployment scenarios. Efficient power supply, fan, and airflow (with front-to-back) design with RE redundancy facilitate consistent and reliable service delivery experience.
Build-As-You-Grow Operational Simplicity	ACX7300 platforms deliver multirate, fixed plus modular I/O for the ultimate in port configuration flexibility. As service demand grows, ACX7300 platforms provide support for 100GbE/400GbE uplinks enhanced by three I/O bays for additional capacity and unrestricted high-power ZR/ZR+ transceiver use across all supporting ports.
Next-Gen Capabilities	Next-gen capabilities include leading technologies such as SR, SRv6, MPLS, Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN), advanced programmability, telemetry, programmable ASIC for future feature upgrades, customizable forwarding scale, and support for any overlay, underlay, or service. Operators can evolve across protocol generations at their own pace.
Zero-Trust Security	Enhanced security capabilities include secure boot, integrated tamper-proof design, and trust anchor with DevID, enabling device attestation and enhanced security through a unique cryptographic digital identity.
Cloud Metro-Ready	The ACX7300 line offers deep buffering for end-to-end service delivery assurance; precision timing capabilities including SyncE, Precision Time Protocol (PTP), and Class C timing for latency-optimized 5G service experiences; and GNSS/GPS (primary clock support via integrated GNSS) network synchronization. ACX7300 line is an ideal choice for service provider, enterprise, and residential use cases and IoT and 4G/5G mobile applications.

Built-In Interface Options and Maximum Port Count for ACX7300 Models

Model (fixed and fixed + I/O bays comparison)	10/25GbE	50GbE	40/100GbE	400GbE
ACX7332 fixed ports only	32	-	8	-
ACX7332 leveraging fixed and I/O bays	78	32	27	4
ACX7348 fixed ports only	48	-	8	-
ACX7348 leveraging fixed and I/O bays	94	32	27	4

ACX7300 Models Fixed Ports Optical Technology Supported

Model	SFP	SFP+	SFP28	QSFP
ACX7332	Y	Y	Y	Y
ACX7348	Y	Y	Y	Y

ACX7300 Module Line Card Optical Technology Supported

Module–Port Numbers	SFP	SFP+	SFP28	SFP56	QSFP28	QSFP56
ACX7300-16Y	Yes	Yes	Yes	Yes
ACX7300-2DC4C					Yes	Yes

Specifications:

Specification	ACX7332	ACX7348
ASIC throughput	2.4 Tbps
Routing Engine (RE)	Optional RE Redundancy CPU: 4Core RAM: 64 GB DDR4 (2x 32GB SODIMM) Mass Storage: 100GB SATA/NVME SSD TPM2.0
Redundancy	Optional Control Plane (RE) Fan Power Supply (AC or DC)
Chassis Type	Fixed plus Modular (3x I/O Bays)
Dimensions (W x H x D)	17.4 x 5.25 x 11.42 in (44.20 x 13.33 x 29.00 cm)
Weight (lb/kg) base bundle	35.6 lb/16.1 kg (DC) 36 lb/16.3 kg (AC)	35.5 lb/16.1 kg (DC) 35.9 lb/16.3 kg (AC)
Power (DC)	40 VDC through 72 VDC
Power (AC)	180 VAC to 264 VAC
Typical power draw (without optics) *	465 W (1x RE) 520 W (2x RE)
Maximum power draw (without optics) *	495 W (1x RE) 551 W (2x RE)
Operating temperature	Operating (0° to 55° C)	Operating (-40° to 65° C)
Cooling	E-Temp (0° to 55° C at 6000 ft) 8-Fans (4x Fran Trays – FRU), N+1	I-Temp (-40° to 65° C at 6000 ft) 8-Fans (4x Fran Trays – FRU), N+1
Humidity	5% through 90% noncondensing
Interfaces supported	1/10/25/100/200/400GbE (fixed and modular capability combined)
Interfaces (fixed)	32x 1-25GbE, SFP/SFP+/SFP28 (MACsec) 8x 100GbE, QSFP28	48x 1-25GbE, SFP/SFP+/SFP28 (MACsec) 8x 100GbE, QSFP28
Interface (modular)	3x I/O Bays–2x 800GbE (10-400GbE ports) and 1x 400GbE (1-100GbE ports) support the following modules (MACsec support on all ports): 16x SFP56 FPC (16x 1/10/25/50GbE) 2x QSFP56/2xQSFP28-DD & 4x QSFP28 (2x 400GbE/2x 200GbE and 4x 100GbE)
Timing	SynchE, PTP, and Class C 1PPS and 10 MHz, BITS Integrated GNSS

* Typical power consumption measured at 77°F (25°C) ambient with 50% load on all ports. Exact power consumption is subject to operating conditions and unit-to-unit variations.

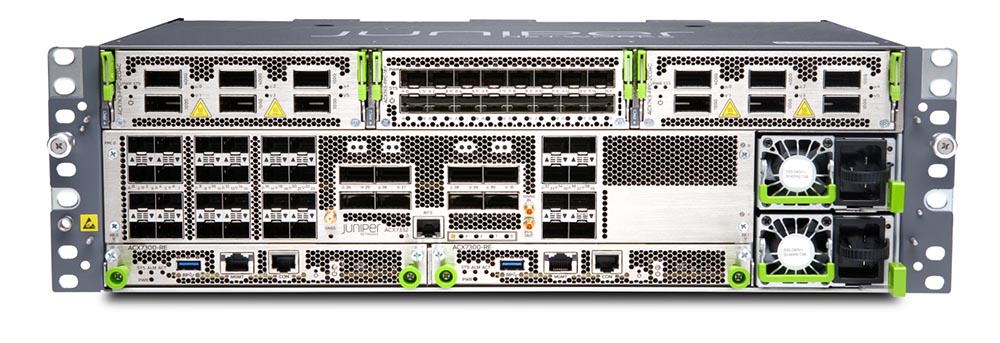

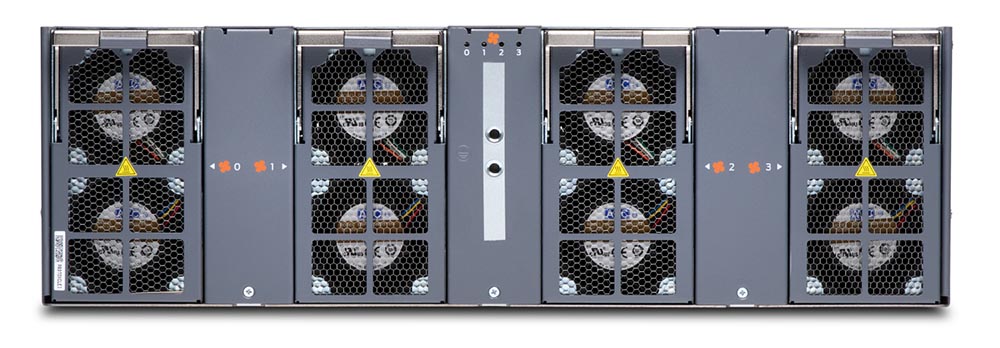

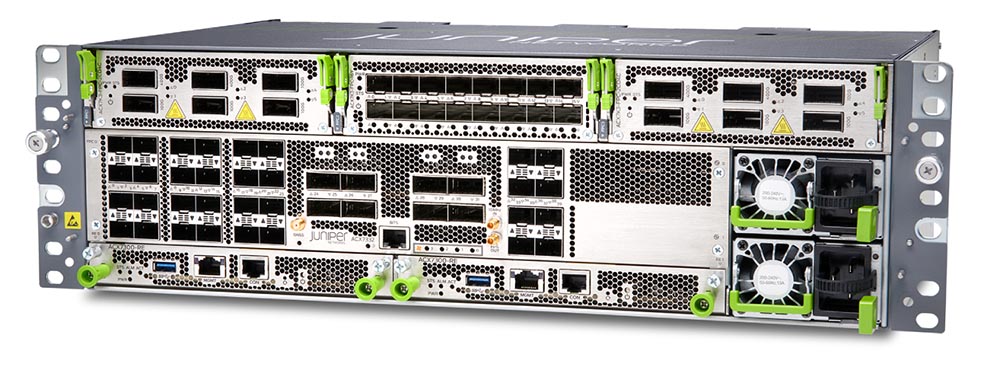

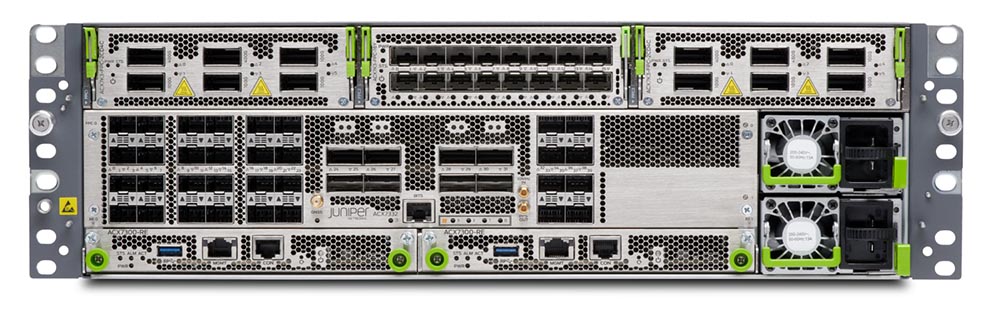

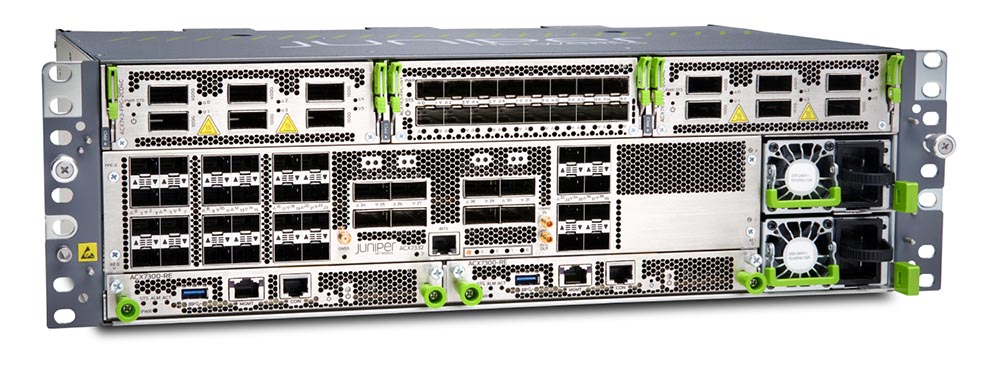

Views:

Documentation:

Download the Juniper Networks ACX7300 Line of Cloud Metro Routers Data Sheet (PDF).
