Juniper AP33 Access Point
802.11ax Wi-Fi 6, Bluetooth LE and IoT Integrates Mist AI for AX


Juniper Networks AP33
Juniper Products
Juniper Access Points
Juniper AP33 Access Point
#AP33-US
List Price: $1,355.00
Our Price: $1,090.78

Click here to jump to more pricing!

Overview:

The Juniper AP33 access point integrates Mist AI for AX capabilities and a dynamic virtual Bluetooth LE (vBLE) antenna array to automate network operation and boost Wi-Fi performance, while providing real-time network insights and location services, including user engagement, asset location, and contact tracing applications. This is achieved without the need for battery-powered BLE beacons and manual calibration. The AP33 access point supports an aggregate data rate up to 3.0 Gbps concurrently. Managed by the Juniper Mist Cloud Architecture, it delivers unprecedented user experiences at a lower cost for retail, warehouse, school, clinic, and home office environments.

Juniper AI-Driven Network

Juniper brings true innovation to the wireless space with the world’s first AI-driven wireless LAN (WLAN).

The Juniper AI-Driven Enterprise makes Wi-Fi predictable, reliable, and measurable with unprecedented visibility into the user experience through customizable service level expectation (SLE) metrics. Time-consuming manual IT tasks are replaced with AI-driven proactive automation and self-healing, lowering Wi-Fi operational costs and saving substantial time and money.

All operations are managed via our open and programmable microservices architecture, which delivers maximum scalability and performance while also bringing DevOps agility to wireless networking and location services.

The Juniper Mist Cloud Architecture

Juniper’s Mist AI leverages a cloud-native microservices architecture that delivers unparalleled agility, scale, and resiliency to your network. An AI engine lowers OpEx and delivers insights by using data science to analyze large amounts of rich metadata collected from Juniper Access Points.

Juniper Mist Edge

Juniper Mist Edge is an on-premises appliance that runs a tunnel termination service. Juniper APs offer a flexible data plane. Traffic can be broken out locally, or tunneled to Juniper Mist Edge. There are many use cases the Juniper Mist Edge solves, including seamless mobility in large campus environments, tunneling of guest traffic to a DMZ, IoT segmentation, and teleworker.

Features:

High Performance Wi-Fi

The AP33 is a six-stream access point. It supports 4x4:4SS in the 5GHz band, delivering a maximum data rate of 2,400 Mbps for high-bandwidth applications. It also supports 2x2:2SS in the 2.4GHz band, delivering a maximum data rate of 575 Mbps. The integrated third radio functions as a network, location, and security sensor, a synthetic test client radio, as well as a spectrum monitor.

AI for AX

With the new features that 802.11ax (Wi-Fi 6) introduces to boost performance and efficiency, configuring and operating an access point has grown far more complex. Juniper automates and optimizes these features with our AI for AX capabilities to improve data transmission scheduling within OFDMA and MUMIMO and assign clients to the best radio to boost the overall performance of the network.

Greater Spectral Efficiency

OFDMA improves spectral efficiency so that an increasing density of devices can be supported on the network. Density has become an issue with the rapid growth of IoT devices, which often utilize smaller data packets than mobile devices and hence increase contention on the network. Additionally, BSS Coloring improves the coexistence of overlapping BSSs and allows spatial reuse within a given channel by reducing packet collisions.

Automatic RF optimization

Radio Resource Management automates dynamic channel and power assignment, taking Wi-Fi and external sources of interference into account with its dedicated sensor radio. The AI engine continuously monitors coverage and capacity SLE metrics to learn and optimize the RF environment. The learning algorithm uses hysteresis on a 24-hour window to conduct a sitewide rebalancing for optimal channel and power assignment.

Unprecedented Insight and Action

A dedicated, dual-band third radio collects data for Juniper’s patent-pending Proactive Analytics and Correlation Engine (PACE), which uses machine learning to analyze user experience, correlate problems, and automatically detect their root cause. These metrics are used to monitor SLEs and provide proactive recommendations to ensure problems don’t occur (or are fixed as quickly as possible when they do). This radio also functions as a synthetic test client to proactively detect and mitigate network anomalies.

Improved IoT Battery Efficiency

The Juniper Mist platform automatically captures packets and streams them to the cloud when major issues are detected. This saves IT time and effort and eliminates the need for truck rolls with sniffers to reproduce and capture data for troubleshooting.

Dynamic Debugging

Constantly monitor services running on the AP33 Series and send alerts whenever a service behaves abnormally. Dynamic debugging relieves IT of having to worry about an AP going offline or any services running on it becoming unavailable.

Dynamic Packet Capture

The Juniper Mist platform automatically captures packets and streams them to the cloud when major issues are detected. This saves IT time and effort and eliminates the need for truck rolls with sniffers to reproduce and capture data for troubleshooting.

Marvis Virtual Conversational Assistant

Marvis is a natural language processing (NLP)-based assistant with a Conversational Interface to understand user intent and goals, simplifying troubleshooting and the collection of network insights. It uses AI and data science to proactively identify issues, determine the root causes and scope of impact, and gain insights into your network and user experiences. It eliminates the need to manually hunt through endless dashboards and CLI commands.

Effortless, Cloud-Based Setup and Updates

The AP33 automatically connects to the Juniper Mist cloud, downloads its configuration, and joins the appropriate network. Firmware updates are retrieved and installed automatically, ensuring that the network is always up to date with new features, bug fixes, and security updates.

Premium Analytics

Juniper Mist Wi-Fi Assurance, User Engagement and Asset Tracking services include a base analytics capability for analyzing up to 30 days of data, which enables you to simplify the process of extracting network insights across your enterprise. If you require dynamic insights like motion paths* and other thirdparty* data and would like the option of customized reports, the Juniper Mist Premium Analytics service is available as an additional subscription.

High-Accuracy Indoor Location

The AP33 has a 16-element vBLE antenna array controlled from the Juniper Mist cloud. Passive antennas enhance the power of a single transmitter and produce directional beams (or can be combined to act as an omnidirectional radio) to accurately detect distance and location with one- to three-meter accuracy. With Juniper’s patented vBLE technology, you can deploy an unlimited number of virtual beacons in your physical environment with no battery-powered BLE beacons required. With support for Bluetooth 5.0, the access point boosts IoT device signal range and battery life.

Patented VBLE Technology

In addition to the industry-leading Wi-Fi technology at the heart of the AP33 access point, our second-generation, patented, and dynamic, 16-element virtual Bluetooth LE (vBLE) antenna array combines with machine learning to eliminate the need for battery-powered beacons. This maximizes scalability and optimizes your deployment investment in location-based services. vBLE enables businesses to provide rich location-based experiences that are engaging, accurate, real-time, and scalable.

Specifications:

AP33 Access Point Specifications
Wi-Fi Standard 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring).
Backwards compatibility with 802.11a/b/g/n/ac
Combined Highest Supported Data Rates 3.0 Gbps
2.4 GHz 2x2 : 2 802.11b/g/n/ac up to 400 Mbps data rate;
2x2 : 2 802.11ax up to 575 Mbps data rate
5 GHz 4x4 : 4 802.11ax up to 2,400 Mbps data rate
MIMO Operation Four spatial stream SU-MIMO for up to 2,400 Mbps wireless data rate to individual 4x4 HE80
Four spatial stream MU-MIMO for up to 2,400 Mbps wireless data rate to up to four MU-MIMOcapable client devices simultaneously
Dedicated Third Radio 2.4GHz and 5GHz dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio
Internal Antennas Two 2.4GHz omnidirectional antennas with 5 dBi peak gain
Four 5GHz omnidirectional antennas with 6 dBi peak gain
Bluetooth 5.0 vBLE 16-element directional antenna array + omnidirecctional Bluetooth antenna
Beam Forming Transmit Beamforming and Maximal Ratio Combining
Power Options 802.3at PoE, 802.3bt PoE
Dimensions 202 x 202 x 44 mm (7.95 x 7.95 x 1.73 in)
Weight 0.98 kg (2.16 lbs) excluding mount and accessories
Operating Temperature Internal antenna: 0° to 40° C
Operating Humidity 10% to 90% maximum relative humidity, noncondensing
Operating Altitude 3,048 m (10,000 ft)
Failures (MTBF) Indoor MTBF in hours is 846,297*
Trusted Platform Module (TPM) Includes a TPM for infrastructure security
I/O Ports and Accessories
Ethernet0 100/1000Base-T, 2.5GBase-T (802.3bz); RJ45; PoE PD
Ethernet1 10/100/1000Base-T; RJ45
USB USB 2.0 support interface
Reset Reset to the factory default settings
Indicators One multi-color status LED

Services Available for the Juniper AP33


Wi-Fi Cloud Services

  • Juniper Mist Wi-Fi Assurance
    • For IT and NOC Teams
      • Predictable and Measurable Wi-Fi
      • Service-Level Expectation (SLE) Support
      • WxLAN Policy Fabric for Role-Based Access
      • Customizable Guest Wi-Fi Portal
      • Radio Resource Management
  • Marvis Virtual Assistant
    • For IT Helpdesk Teams
      • AI-Powered Virtual Network Assistant
      • Natural Language Processing Conversational Interface
      • Anomaly Detection
      • Client SLE Visibility and Enforcement
      • Data Science-Driven Root-Cause Analysis

Bluetooth Cloud Services

  • Juniper Mist Mobile Engagement
    • For Digital Experience Teams
      • Accurate (1-3m) Turn-by-Turn Navigation
      • Sensor Fusion with Dead Reckoning
      • Unsupervised Machine Learning
      • Virtual Beacons with Custom Notifications
      • Mobile SDK for iOS and Android
  • Juniper Mist Asset Visibility
    • For Process and Resource Improvement Teams
      • Identification of Assets by Name and View Location
      • Zonal/Room Accuracy for Third-Party Tags
      • Historical Analytics for Asset Tags
      • Telemetry for Asset Tags (temperature, motion, and other data)
      • APIs for Viewing Assets and Analytics

Analytics Cloud Services

  • Juniper Mist Premium Analytics
    • For Network Teams
      • Baseline Analytics Features Come Included with Wi-Fi Assurance, Mobile Engagement, and Asset Visibility Subscriptions
      • End-to-End Network Visibility
      • Orchestrated Networking and Application Performance Queries
      • Simplified Network Transparency
    • For Business Teams
      • Baseline Analytics Features Come Included with Wi-Fi Assurance, Mobile Engagement, and Asset Visibility Subscriptions
      • Customer Segmentation and Reporting Based on Visitor Telemetry
      • Customized* Dwell and Third-Party Reporting for Traffic and Trend Analysis
      • Correlated Customer-Guest Traffic and Trend Analysis

*Based on Telcordia SR-332 issue 3, Method I, Case 3 and measured at temperature of 25°C (77°F) for indoor access points, and 65°C (149°F) for outdoor access points.

Compare:

The table below compares the supported major functions of the Juniper Wi-Fi 6E and Wi-Fi 6 access points to help in selecting the most appropriate model(s).

  AP63 AP45 AP43 AP34 AP33 AP32 AP12
Deployment Outdoor Indoor Indoor Indoor Indoor Indoor Indoor Wall Plate/Desk Mount
Wi-Fi Standard 802.11ax (Wi-Fi 6) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6)
5GHz: 4x4 : 4SS
2.4GHz: 2x2 :2SS
802.11ax (Wi-Fi 6)
5GHz: 4x4 : 4SS
2.4GHz: 2x2 : 2SS
802.11ax (Wi-Fi 6) 2x2 : 2SS
Wi-Fi Radios Dedicated third radio Dedicated fourth radio Dedicated third radio Dedicated fourth radio Dedicated third radio Dedicated third radio Dedicated third radio
Antenna Options Internal/External Internal/External Internal/External Internal Internal Internal/External Internal
Virtual BLE
IoT Interface
IoT Sensors Temperature,
Accelerometer
Humidity,
Pressure,
Temperature
Temperature
Warranty One Year Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime
Frequencies Supported 2.4GHz
5GHz
2.4GHz
5GHz
6GHz
2.4GHz
5GHz
2.4GHz
5GHz
6GHz
2.4GHz
5GHz
2.4GHz
5GHz
2.4GHz
5GHz

Antenna Patterns:

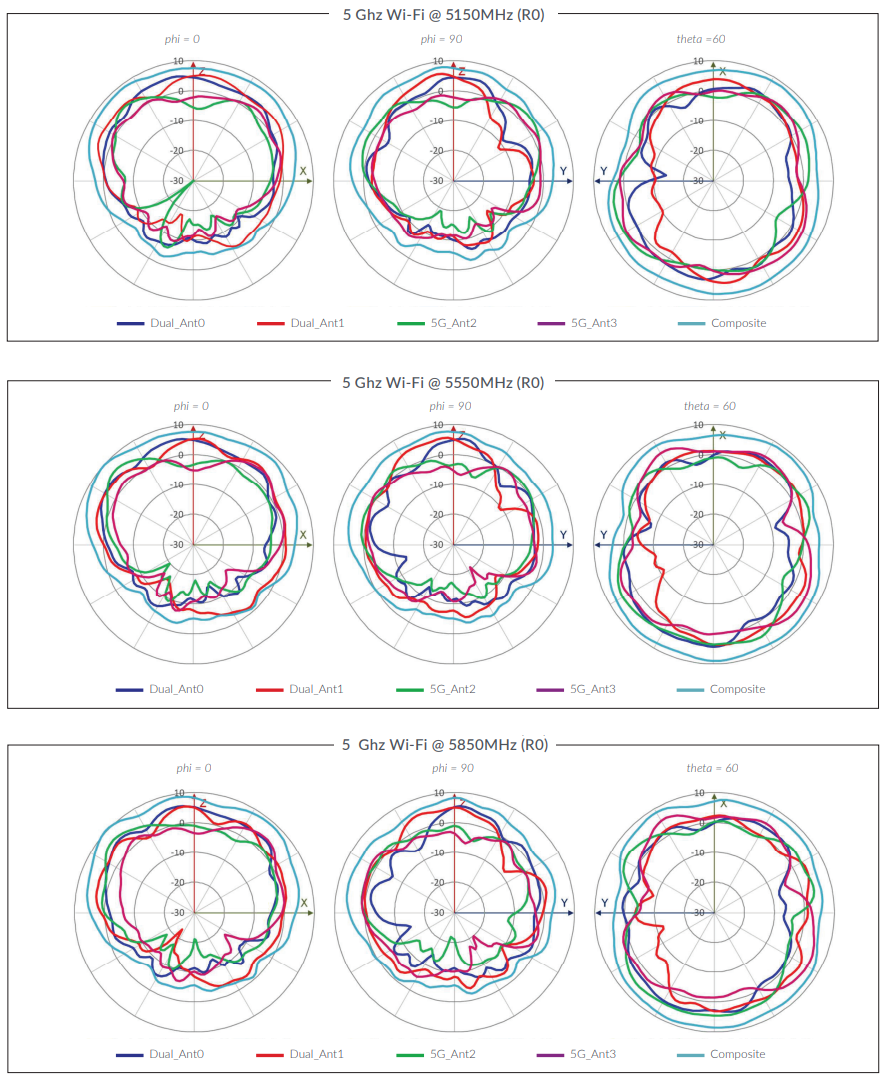

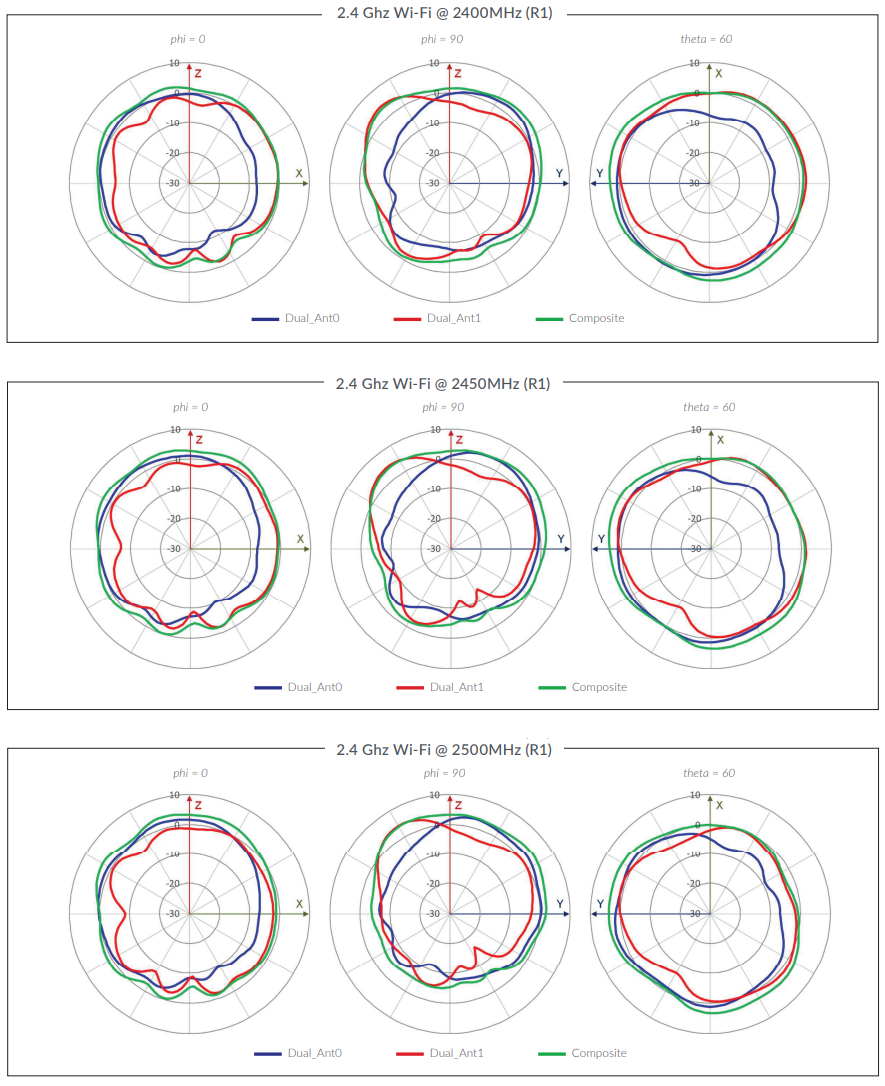

AP33 Wi-Fi Antenna Plots

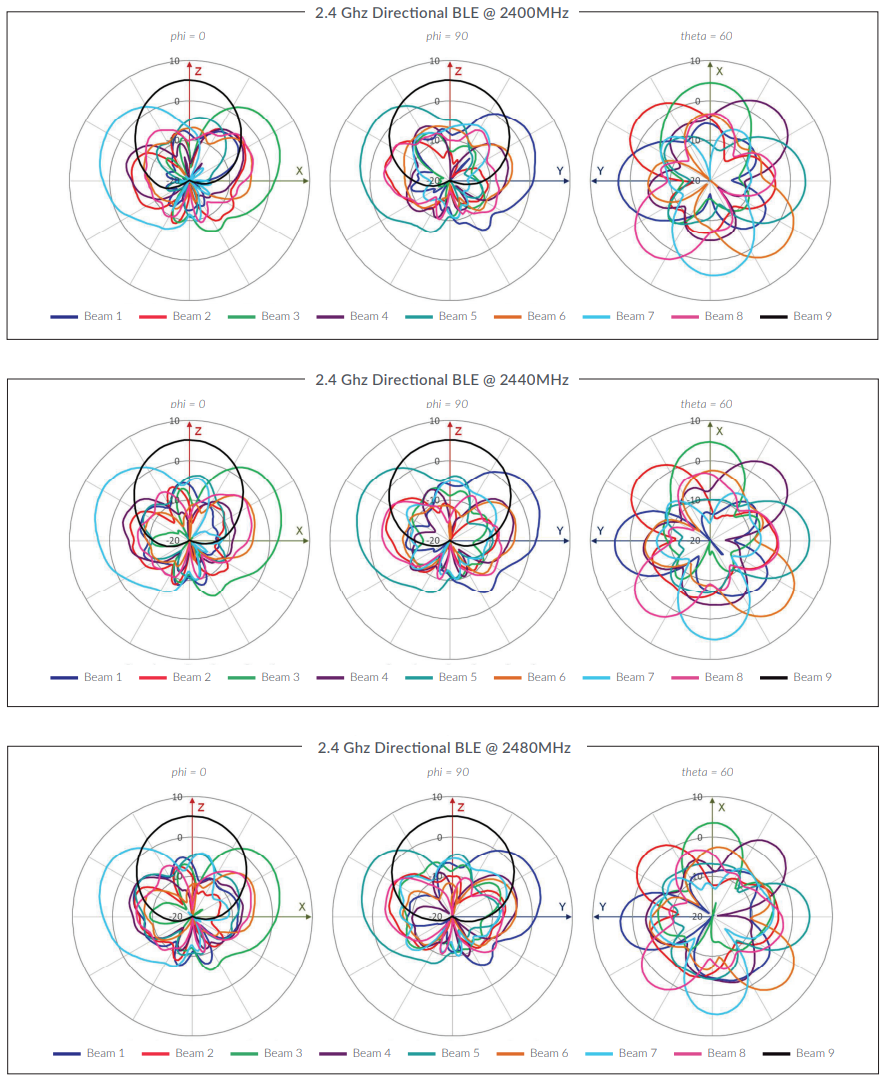

AP33 Directional BLE Antenna Plots

AP33 Omni BLE Antenna Plots

Views:


Top View
Top View

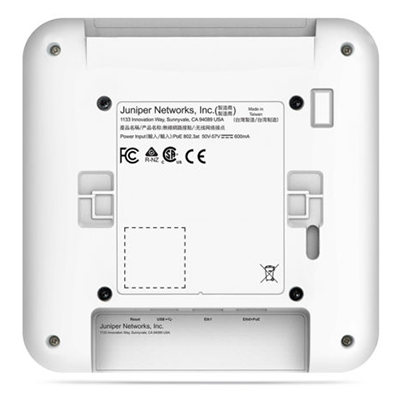

Bottom View
Bottom View

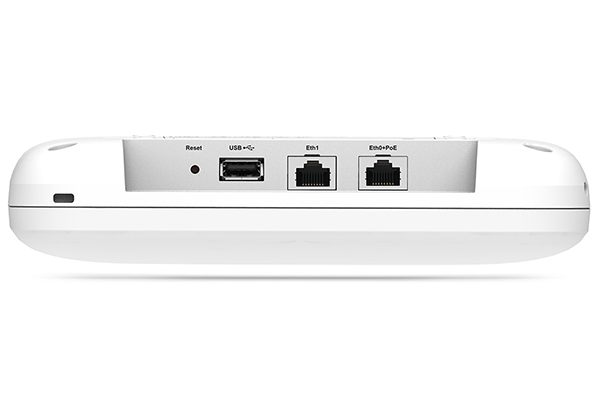

Ports View

Ports View

Documentation:

Download the Juniper AP33 Access Point Datasheet (PDF).
