Juniper AP45 Access Point
802.11ax Wi-Fi 6, Bluetooth LE Integrates Mist AI for AX


Juniper Networks AP45
Juniper Products
Juniper Access Points
Juniper AP45 Access Point (Internal Antenna)
#AP45-US
Get a Quote!
Juniper AP45 Access Point (External Antenna)
#AP45E-US
Get a Quote!

Click here to jump to more pricing!

Overview:

The Juniper AP45 brings the performance and patented virtual Bluetooth LE (vBLE) technology of the Juniper AP43 to the 6GHz band for enterprises needing increased channel widths and capacity. Juniper AI solutions for Wi-Fi 6E optimize operator and user experiences with secure, near-real-time client-to-cloud automation, insight, and actions.  The AP45 is a tri-band device with a dedicated fourth radio and a dynamic, 16-element vBLE antenna array. It enables the industry’s most accurate and scalable location services, including user engagement, asset visibility, and contact tracing, with no need for battery-powered BLE beacons or manual calibration.

Juniper AI-Driven Network

The Juniper AP45 brings the performance and vBLE technology of the Juniper AP43 to the 6GHz band for enterprises needing increased channel widths and capacity. Juniper AI solutions for Wi-Fi 6E optimize operator and user experiences with secure, near-real-time client-to-cloud automation, insight, and actions. Juniper brings true innovation to the wireless space with the world’s first tri-band AIdriven wireless LAN (WLAN).

The Juniper AI-Driven Enterprise makes Wi-Fi predictable, reliable, and measurable, offering unprecedented visibility into the user experience through the use of unique service-level expectation (SLE) metrics. Proactive, AI-driven automation and selfhealing replace time-consuming manual tasks, lowering Wi-Fi operational costs and saving substantial time and money. Juniper also brings enterprise-grade Wi-Fi and Bluetooth Low Energy (LE) together so businesses can increase the value of their wireless networks through personalized location services, such as wayfinding, proximity notifications, and asset location. With Juniper’s patented virtual BLE (vBLE) technology, no battery beacons or manual calibration are required. All operations are managed using the open and programmable microservices-based Juniper Mist™ cloud architecture. The system delivers maximum network scalability and performance while also bringing DevOps agility to WLANs and location services.

The Juniper Mist Cloud Architecture

Juniper’s cloud-native, AI-driven microservices architecture delivers unparalleled agility, scale, and resiliency to your network. It lowers OpEx and delivers unprecedented insights into network performance, behaviors, traffic patterns, and potential trouble spots by using data science to analyze large amounts of rich metadata collected by Juniper Access Points.

Juniper Mist Edge

Juniper Mist Edge is an on-premises appliance that runs a tunnel termination service. Juniper APs offer a flexible data plane. Traffic can be broken out locally, or tunneled to Juniper Mist Edge. There are many use cases the Juniper Mist Edge solves, including seamless mobility in large campus environments, tunneling of guest traffic to a DMZ, IoT segmentation, and teleworker.

Features:

High Performance Wi-Fi

The AP45 Series is comprised of tri-band, quad-radio 4x4 802.11ax with maximum data rates of 4800 Mbps in the 6GHz band, 2400 Mbps in the 5GHz band, and 1148 Mbps in the 2.4GHz band. The fourth radio functions as a network, location, and security sensor, a synthetic test client radio, as well as a spectrum monitor. With 802.11ax Orthogonal Frequency Division Multiple Access (OFDMA), Multi-User Multiple Input Multiple Output (MU-MIMO), and BSS Coloring technologies, the AP45 Series offers performance at unprecedented levels to support new bandwidth-hungry applications and soaring device densities.

AI for AX

With the features 802.11ax (Wi-Fi 6E) offers to boost performance and efficiency, configuring and operating an access point has grown far more complex. Juniper automates and optimizes these features with AI for AX capabilities to optimize BSS Coloring, improve data transmission scheduling within OFDMA and MU-MIMO, and assign clients to the best radio to boost the overall performance of the network.

Greater Spectral Efficiency

OFDMA improves spectral efficiency so that an increasing density of devices can be supported on the network. Density has become an issue with the rapid growth of IoT devices, which often utilize smaller data packets than mobile devices and hence increase the burden and contention on the network. Additionally, BSS Coloring improves the coexistence of overlapping BSSs and allows spatial reuse within a given channel by reducing packet collisions.

Automatic RF optimization

With the increasing complexity that the addition of 6GHz spectrum to the 2.4GHz and 5GHz spectrum brings, reliable RF optimization is even more critical than in the past. Radio Resource Management automates dynamic channel and power assignment, taking Wi-Fi and external sources of interference into account with a dedicated sensor radio. The AI engine continuously monitors coverage and capacity SLE metrics to learn and optimize the RF environment. A learning algorithm uses hysteresis on a 24-hour window to conduct a sitewide rebalancing for optimal channel and power assignment.

Unprecedented Insight and Action

A dedicated, dual-band third radio collects data for Juniper’s patent- pending Proactive Analytics and Correlation Engine (PACE), which uses machine learning to analyze user experiences, correlate problems, and automatically detect their root causes. These metrics are used to monitor SLEs and provide proactive recommendations to ensure problems don’t occur (or are fixed as quickly as possible when they do). This radio also functions as a synthetic test client to proactively detect and mitigate network anomalies.

Improved IoT Battery Efficiency

By incorporating the 802.11ax target wake time (TWT) capability and Bluetooth 5.1, AP45 access points help extend the battery life of IoT devices, particularly as additional ones join the network.

Dynamic Debugging

Constantly monitor services running on the AP45 and send alerts whenever a service behaves abnormally. Dynamic debugging relieves IT of having to worry about an AP going offline or any services running on it becoming unavailable.

Dynamic Packet Capture

The Juniper Mist platform automatically captures packets and streams them to the cloud when major issues are detected. This saves IT time and effort and eliminates the need for truck rolls with sniffers to reproduce and capture data for troubleshooting.

Marvis Virtual Conversational Assistant

Marvis is a natural language processing (NLP)-based assistant with a Conversational Interface to understand user intent and goals, simplifying troubleshooting and the collection of network insights. It uses AI and data science to proactively identify issues, determine the root causes and scope of impact, and gain insights into your network and user experiences. It eliminates the need to manually hunt through endless dashboards and CLI commands.

Effortless, Cloud-Based Setup and Updates

The AP45 automatically connects to the Juniper Mist cloud, downloads its configuration, and joins the appropriate network. Firmware updates are retrieved and installed automatically, ensuring that the network is always up to date with new features, bug fixes, and security updates.

Premium Analytics

Our Wireless Assurance, User Engagement, and Asset Visibility services include a base analytics capability for analyzing up to 30 days of data, which enables you to simplify the process of extracting network insights across your enterprise. If you require dynamic insights like motion paths and other third-party data and would like the option of customized reports, the Juniper Mist Premium Analytics service is available as an additional subscription.

High-Accuracy Indoor Location

The AP45 has a 16-element virtual Bluetooth LE (vBLE) antenna array controlled from the Juniper Mist cloud. Passive antennas enhance the power of a single transmitter and produce directional beams (or can be combined to act as an omnidirectional radio) to accurately detect distance and location with 1-3 meter meter accuracy. With Juniper’s patented vBLE technology, you can deploy an unlimited number of virtual beacons in your physical environment with no need to install battery-powered physical BLE beacons. Support for Bluetooth 5.1 boosts IoT device range and battery life.

Patented VBLE Technology

In addition to the industry-leading Wi-Fi technology at the heart of the AP45 access point, our second-generation, patented, and dynamic, 16-element virtual Bluetooth LE (vBLE) antenna array combines with machine learning to eliminate the need for batterypowered beacons. This maximizes scalability and optimizes your deployment investment in location-based services. vBLE enables businesses to provide rich location-based experiences that are engaging, accurate, real-time, and scalable.

Specifications:

AP45 Access Point Specifications
Wi-Fi Standard 802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring).
Backwards compatibility with 802.11a/b/g/n/ac
Combined Highest Supported Data Rates Tri-Band: 8.3 Gbps
Dual 5GHz (internal antenna model): +6 GHz 9.6Gbps
2.4 GHz 4x4 : 4 802.11ax up to 1,148 Mbps data rate
5 GHz 4x4 : 4 802.11ax up to 2,400 Mbps data rate
6 GHz 4x4 : 4 802.11ax up to 4,800 Mbps data rate
MIMO Operation Four spatial stream SU-MIMO for up to 4,800 Mbps wireless data rate to individual 4x4 HE160
Four spatial stream MU-MIMO for up to 4,800 Mbps wireless data rate to up to four MU-MIMO capable client devices simultaneously
Dedicated Third Radio 2.4GHz, 5GHz, and 6GHz tri-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio
Internal Antennas Four 2.4GHz omnidirectional antennas with 4 dBi peak gain
Four 5GHz omnidirectional antennas with 6 dBi peak gain
Four 6GHz omnidirectional antennas with 6 dBi peak gain*
*Subject to change
Bluetooth 5.0 vBLE 16-element Directional Antenna Array + Omni Bluetooth Antenna
Beam Forming Transmit Beamforming and Maximal Ratio Combining
Power Options 802.3at PoE, 802.3bt PoE
Dimensions 230mm x 230mm x 50mm
Weight AP45: 2.01kg,
AP45E: 1.97kg
Operating Temperature Internal antenna: 0° to 40° C
External antenna: -20° to 50° C
Operating Humidity 10% to 90% maximum relative humidity, noncondensing
Operating Altitude 3,048 m (10,000 ft)
Trusted Platform Module (TPM) Includes a TPM for infrastructure security
I/O Ports and Accessories
IoT Sensors Temperature, Accelerometer
Ethernet0 100/1000/2500/5000Base-T (802.3bz); RJ45; PoE PD
Ethernet1 10/100/1000Base-T; RJ45; optional PoE 15.4W PSE mode (requires 802.3bt on Ethernet0)
USB USB 2.0 support interface, 900 mA output
Reset Reset to the factory default settings
Indicators One multi-color status LED
Traffic Forwarding Options Eth0, Eth1, Juniper Mist Edge

Services Available for the Juniper AP45


Wi-Fi Cloud Services

  • Juniper Mist Wi-Fi Assurance
    • For IT and NOC Teams
      • Predictable and Measurable Wi-Fi
      • Service-Level Expectation (SLE) Support
      • WxLAN Policy Fabric for Role-Based Access
      • Customizable Guest Wi-Fi Portal
      • Radio Resource Management (RRM) Driven by AI
  • Marvis Virtual Assistant
    • For IT Helpdesk Teams
      • AI-Powered Virtual Network Assistant
      • Natural Language Processing Conversational Interface
      • Anomaly Detection
      • Client SLE Visibility and Enforcement
      • Data Science-Driven Root-Cause Analysis

Bluetooth Cloud Services

  • Juniper Mist Mobile Engagement
    • For Digital Experience Teams
      • Accurate (1-3m) Turn-by-Turn Navigation
      • Sensor Fusion with Dead Reckoning
      • Unsupervised Machine Learning
      • Virtual Beacons with Custom Notifications
      • Mobile SDK for iOS and Android
  • Juniper Mist Asset Visibility
    • For Process and Resource Improvement Teams
      • Identification of Assets by Name and View Location
      • Zonal/Room Accuracy for Third-Party Tags
      • Historical Analytics for Asset Tags
      • Telemetry for Asset Tags (temperature, motion, and other data)
      • APIs for Viewing Assets and Analytics

Analytics Cloud Services

  • Juniper Mist Premium Analytics
    • For Network Teams
      • Baseline Analytics Features Come Included with Wi-Fi Assurance, Mobile Engagement, and Asset Visibility Subscriptions
      • End-to-End Network Visibility
      • Orchestrated Networking and Application
      • Performance Queries
      • Simplified Network Transparency
    • For Business Teams
      • Baseline Analytics Features Come Included with Wi-Fi Assurance, Mobile Engagement, and Asset Visibility Subscriptions
      • Customer Segmentation and Reporting Based on Visitor Telemetry
      • Customized* Dwell and Third-Party Reporting for Traffic and Trend Analysis
      • Correlation of Customer-Guest Traffic and Trend Analysis
      • Correlated Customer-Guest Traffic and Trend Analysis

*Based on Telcordia SR-332 issue 3, Method I, Case 3 and measured at temperature of 25°C (77°F) for indoor access points, and 65°C (149°F) for outdoor access points.

Compare:

The table below compares the supported major functions of the Juniper Wi-Fi 6E and Wi-Fi 6 access points to help in selecting the most appropriate model(s).

  AP63 AP45 AP43 AP34 AP33 AP32 AP12
Deployment Outdoor Indoor Indoor Indoor Indoor Indoor Indoor Wall Plate/Desk Mount
Wi-Fi Standard 802.11ax (Wi-Fi 6) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ax (Wi-Fi 6)
5GHz: 4x4 : 4SS
2.4GHz: 2x2 :2SS
802.11ax (Wi-Fi 6)
5GHz: 4x4 : 4SS
2.4GHz: 2x2 : 2SS
802.11ax (Wi-Fi 6) 2x2 : 2SS
Wi-Fi Radios Dedicated third radio Dedicated fourth radio Dedicated third radio Dedicated fourth radio Dedicated third radio Dedicated third radio Dedicated third radio
Antenna Options Internal/External Internal/External Internal/External Internal Internal Internal/External Internal
Virtual BLE
IoT Interface
IoT Sensors Temperature,
Accelerometer
Humidity,
Pressure,
Temperature
Temperature
Warranty One Year Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime
Frequencies Supported 2.4GHz
5GHz
2.4GHz
5GHz
6GHz
2.4GHz
5GHz
2.4GHz
5GHz
6GHz
2.4GHz
5GHz
2.4GHz
5GHz
2.4GHz
5GHz

Views:

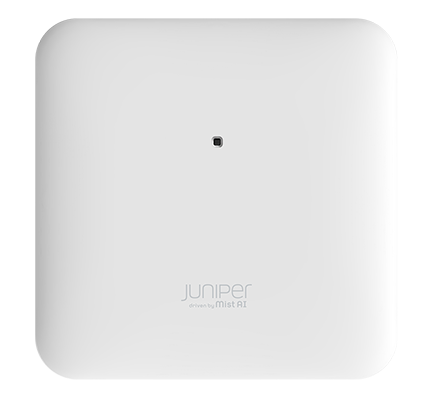

Top View
Top View

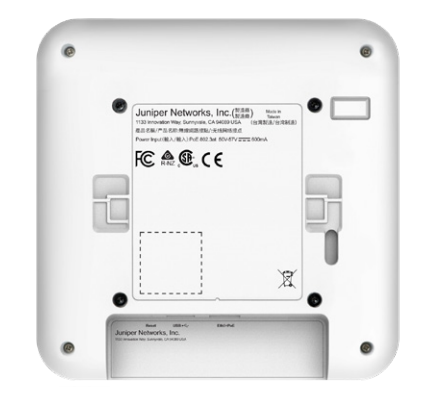

Bottom View
Bottom View

Documentation:

Download the Juniper AP45 Access Point Datasheet (PDF).
