Overview

Architecture & Component

Overview:

The QFX10000 line of highperformance fixed core and spine switches delivers industry-leading scalability, density, and flexibility, helping cloud and data center operators build automated data center networks that provide superior long-term investment protection. Designed for a diverse set of deployment options, the QFX10000 switches allow data center operators to build cloud networks that best suit their deployment needs and easily evolve as requirements change over time.

Product Description

Juniper Networks QFX10002 line of fixed configuration switches offers 72-port and 36-port 40GbE options in a 2 U form factor, with support for 10GbE and 100GbE. Both switches support quad small form-factor pluggable plus transceiver (QSFP+) and QSFP28 ports for 40GbE and 100GbE speeds, respectively. With support for 10GbE, 40GbE, and 100GbE in a single platform, the QFX10002 switches provide the foundation for today’s data center, delivering long-term investment protection for current and emerging requirements.

Built on custom, Juniper-designed Q5 ASICs, the high-performance, highly versatile QFX10002 switches scale from 2.88 Tbps to 5.76 Tbps of throughput. Additionally, by offering the industry’s highest 100GbE port density—up to 24 in a 2 U fixed form factor— the QFX10002 enables a simple, consolidated network design and allows customers to seamlessly evolve data center networks from existing 10GbE and 40GbE architectures to 100GbE to keep pace with evolving needs.

The QFX10002 is a member of the QFX10000 line of Ethernet switches, which can be deployed in a number of different network designs and fabrics, including Layer 3 fabric and multichassis link aggregation (MC-LAG) for Layer 2 and Layer 3 networks, giving customers complete architectural flexibility. Additionally, the open architecture ensures that customers can innovate on top of Juniper Networks Junos® operating system to accelerate their pace of innovation.

QFX10000 switches are also a key component of Juniper Networks MetaFabric Architecture, which provides a simple, open, and smart approach to building data center networks. Additionally, the QFX10000 switches support Data Center Interconnect (DCI), critical to workload mobility and application availability.

For networks evolving to SDN, the QFX10000 switches can integrate with OpenContrail and VMware NSX SDN controllers, giving users options for SDN systems. The QFX10000 performs both Virtual Extensible LAN (VXLAN) L2 and L3 gateway functionality; the open, standards-based platform also interoperates with Open vSwitch Database (OVSDB) to support automated management and control capabilities.

Highlights

Up to 72 40GbE ports in a 2 U form factor
Up to 5.76 Tbps Layer 2 and Layer 3 performance
Unparalleled investment protection with support for 10GbE, 40GbE, and 100GbE in the same platform
Highest logical L2/L3 scale—up to 512,000 media access control (MAC) addresses, 2 million host routes, and 2 million forwarding information base forwarding tables
Deep buffers with up to 100 ms packet buffering per port
No head-of-line blocking with Virtual Output Queue (VOQ)-based architecture
Flexible network architectures including L3 fabric and Juniper’s MC-LAG for L2 and L3 networks
Juniper virtualized open network operating system framework for programmability through APIs
Advanced Junos OS features such as BGP add-path, VXLAN routing, MPLS, and Fibre Channel over Ethernet (FCoE)
Rich automation capabilities with Python, Chef Puppet, and zero touch provisioning (ZTP)

Architecture and Key Components:

QFX10002 Switch Models

The QFX10002 line includes two fixed 2 U switch models, each providing wire-speed packet performance in 10GbE, 40GbE, or 100GbE speeds. Both switches provide a rich set of Junos OS features. In addition to a high throughput Q5 ASIC, the control plane performance on all QFX10002 switches is further enhanced with a powerful 2.5 GHz quad core Intel CPU and 16 GB of SDRAM.

QFX10002-36Q: The QFX10002-36Q 40GbE switch features 36 QSFP+ ports or 12 QSFP28 100GbE ports with two redundant 1600 W AC/DC power supplies and three fan trays.
QFX10002-72Q: The QFX10002-72Q 40GbE switch offers 72 QSFP+ ports or 24 QSFP28 100GbE ports with four redundant 1600 W AC/DC power supplies and three fan trays.

The Q5 ASIC

The QFX10002 switches are built with Juniper custom Q5 ASICs, which offer industry-leading performance and scale with 1 Tbps of switching throughput and support for network virtualization with VXLAN, Ethernet VPN (EVPN), and MPLS. The Q5 ASIC is 400GbE-ready and embedded with an on-chip analytics capability, along with a precision timing protocol and highfrequency monitoring.

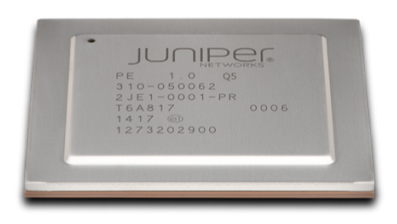

Figure 1: The custom-built Juniper Q5 ASIC

Flexible Network Architectures

QFX10000 switches support a diverse set of deployment options, including L3 fabric and L2 and L3 networks with MCLAG. Customers can choose the architecture that best suits their deployment needs and easily adapt and evolve as requirements change over time. The QFX10002 switches serve as the universal building block for all of these switching architectures, enabling data center operators to build cloud networks their way.

Layer 3 Fabric: For customers looking to build scale-out data centers, a Layer 3 spine and leaf Clos fabric is ideal due to its nonblocking and predictable performance and scale characteristics. For example, a two-tier fabric with QFX10000 switches as the spine and QFX5100 switches as leafs can scale to support more than 6,900 10GbE server ports at 3:1 oversubscription. One of the most complicated tasks in building an IP fabric is assigning all of the details such as IP addresses, BGP autonomous system (AS) numbers, routing policy, loopback address assignments, and many other implementation details. The second largest problem is automating the creation of an IP fabric at a large scale. Juniper has created the OpenClos project to provide free and open-source tools to automate the creation of IP fabrics in the data center. OpenClos is a set of Python scripts that has been developed as an open-source project and lives on GitHub. OpenClos takes a set of inputs that describe the shape and size of a data center and it outputs network switch configuration files and even a cabling plan.
MC-LAG: QFX10000 switches eliminate Spanning Tree Protocol (STP) in traditional L2 networks when deployed in a MC-LAG configuration. The active/active operation of MC-LAG ensures complete bandwidth utilization between the network’s access and aggregation layers, while the dual control plane technology ensures highest availability for applications.
Overlays: Customers can deploy overlay networks to provide Layer 2 adjacencies for applications over Layer 3 fabrics. The overlay networks utilize VxLAN in the data plan and EVPN or OVSDB for programming the overlays. The overlays can operate without a controller or can be orchestrated with an SDN controller like OpenContrail or VMWare NSX.

Carrier-Class Operating System

The QFX10000 switches run the same Junos OS used by all other Juniper Networks EX Series and QFX Series Ethernet Switches, as well as the Juniper Networks routers that power the world’s largest and most complex networks.

By using a common operating system, Juniper delivers a consistent implementation and operation of control plane features across all products. Junos OS employs a highly available modular architecture that prevents isolated failures from bringing down an entire system. Key Junos OS features that enhance the functionality and capabilities of the QFX10000 switches include:

Software modularity, with process modules running independently in their own protected memory space and with the ability to do process restarts
Uninterrupted routing and forwarding, with features such as nonstop routing (NSR) and nonstop bridging (NSB)
Commit and rollback functionality, which ensures error-free network configurations
A powerful set of scripts for on-box problem detection, reporting, and resolution

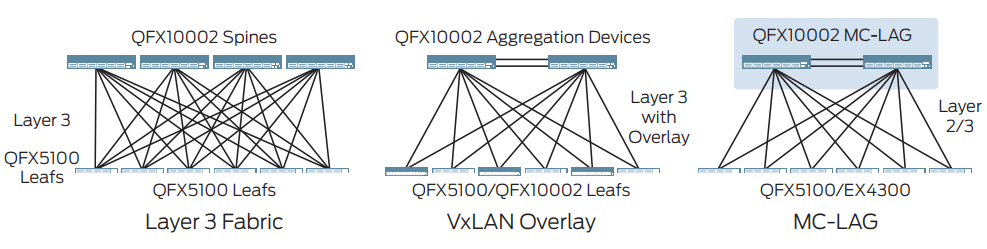

Figure 2: QFX10000 switches can be deployed in Layer 3 fabric, VxLAN overlay, or MC-LAG configurations.

Juniper Virtualized Open Network Operating System Framework

The QFX10000 switches have an open software architecture that enables customers to innovate along with Juniper to accelerate the pace of innovation. Customers can create and run applications alongside Junos OS; these applications can then follow their own software release schedule.

This new solution offers modularity and direct programmability through APIs. The platform and Packet Forwarding Engine (PFE) modules are separate from the control module(s). Customers can create and run guest applications, either as a VM or a Linux process (daemon), alongside Junos OS. They can also communicate with Junos OS as well as directly with platform and PFE modules through normalized programmable APIs. Having the ability to build applications that can program the QFX10000 control plane, data plane, and the platform itself, customers can implement specific and unique network forwarding functions and automate the control and management by integrating with their own SDN controller and orchestration tools. The QFX10000 programmable APIs have a stable abstraction so that the customer’s applications can work across Juniper platforms as well as future Junos OS releases. Based on Apache Thrift, the QFX10000 switches support standardized API definition via Interface Description Language (IDL), while allowing users to employ their favorite programming language.

Other services such as analytics and automation can also run as separate processes (daemons) and can be directly accessed through orchestration tools.

Figure 3: Juniper Virtualized Open Network Operating System Framework

Junos Space Network Director

The QFX10000 switches can be managed through Juniper Networks Junos Space Network Director, a next-generation network management solution that allows users to visualize, analyze, and control the entire enterprise network—data center and campus, physical and virtual—through a single pane of glass. Network Director incorporates sophisticated analytics for realtime intelligence, trended monitoring, and automation to increase agility and ensure faster rollout and activation of services.

For cloud deployments, Network Director provides a set of REST APIs that enable on-demand and dynamic network services by simplifying the consumption of services for multitenant environments. With third-party cloud orchestration tool integration, the Network Director API enables automation and provisioning of L2, L3, and security services in the data center without the need for manual operator intervention.

Features and Benefits:

Virtual Output Queue (VOQ)

The QFX10000 switches support a Virtual Output Queue (VOQ)- based architecture designed for very large deployments. VOQ refers to a queue on the egress port that is maintained by the ingress PFE. With VOQ architecture, packets are queued and dropped on ingress during congestion with no head-of-line blocking.

Automation

QFX10000 switches support a number of network automation features, including operations and event scripts, automatic rollback, ZTP, and Python scripting. The switches also integrate with VMware NSX, OpenContrail, Puppet, OpenStack, and CloudStack.

MPLS

QFX10000 switches support a broad set of MPLS features, including L3 VPN, IPv6 provider edge router (6PE, 6VPE), RSVP traffic engineering, and LDP to allow standards-based network segmentation and virtualization.

VXLAN

The QFX10000 supports Layer 2 and Layer 3 gateway services that enable VXLAN-to-VLAN connectivity at any tier of the data center network, from server access to the edge. The QFX10000 can integrate with NSX through data plane (VXLAN) and control and management plane (OVSDB) protocols to centrally automate and orchestrate the data center network.

FCoE

As a Fibre Channel over Ethernet (FCoE) transit switch, the QFX10000 switches provide an IEEE data center bridging (DCB)- converged network between FCoE-enabled servers and an FCoEenabled Fibre Channel storage area network (SAN). The switches offer a full-featured DCB implementation that provides strong monitoring capabilities for the SAN and LAN administration teams to maintain clear separation of management. The FCoE transit switch functionality, including priority-based flow control (PFC) and Data Center Bridging Capability Exchange (DCBX), are included as part of the default software.

Specifications:

	Details
Form factor	Fixed 2 U core/spine
Dimensions (W x H x D)	17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)
Switching capacity	QFX10002-36Q: 2.88 Tbps/1 Bpps QFX10002-72Q: 5.76 Tbps/2 Bpps QFX10002-60C: 12 Tbps/4 Bpps
Port densities(10/25/40/50/100/400GbE)	QFX10002-36Q/72Q: 144/288 x 10GbE QFX10002-36Q/72Q: 36/72 x 40GbE QFX10002-36Q/72Q: 12/24 x 100GbE QFX10002-60C: 192 x 10GbE QFX10002-60C: 60 x 40/100GbE
Power consumption	QFX10002-36Q: 800W (max), 560W (typical) QFX10002-72Q: 1425W (max), 2000 (typical) QFX10002-60C: 2500W (max), 2000W (typical
Buffer capacity	QFX10002-36Q: 12 GB QFX10002-72Q: 24GB QFX10002-60C: 24GB
MAC addresses	QFX10002-36Q: 256,000 QFX10002-72Q: 512,000 QFX10002-60C: 1,000,000
IPv4 unicast/multicast routes	128,000
IPv6 unicast/multicast routes	128,000
Number of VLANs	4,000
ARP entries	QFX10002-36Q: 192,000 QFX10002-72Q: 340,000 QFX10002-60C: 340,000
Latency	2.5 us within PFE 5.5 us within PFE
Overlay Management and Protocols	QFX10002-36Q, QFX10002-72Q: Contrail Networking, VMware NSX, VXLAN L2 & L3 Gateway, VXLAN OVSDB, EVPN-VXLAN QFX10002-60C: Contrail Networking, VMware NSX, VXLAN L2 & L3 Gateway, VXLAN OVSDB, EVPN-VXLAN, EVPN multihoming

	QFX10002-36Q	QFX10002-72Q	QFX10002-60C
System throughput	Up to 2.88 Tbps	Up to 5.76 Tbps	Up to 12 Tbps
Forwarding capacity	Up to 1 Bpps	Up to 2 Bpps	Up to 4 Bpps
Maximum 10GbE port density	144	288	192
Maximum 40GbE port density	36	72	60
Maximum 100GbE port density	12	24	60

	QFX10002-36Q	QFX10002-72Q	QFX10002-60C
Dimensions (W x H x D):	17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)	17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)	17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)
Rack units	2U
Weight	50 lbs. (23 Kg)	68.6 lbs. (31 Kg)	80.5 lbs. (36.5 kgs)
Operating System	Junos OS
CPU	Intel Quad Core Ivy Bridge 2.5 GHz CPU, 16 GB SDRAM	Intel Quad Core Ivy Bridge 2.5 GHz CPU, 16 GB SDRAM	Intel Ivy Bridge 4C/2.3GHz processor
Management and Precision Time Protocol (PTP) interfaces	1 small form-factor pluggable transceiver (SFP/SFP +) port for PTP Grandmaster Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port SMB In, SMB Out, 10 MHz In, 10 MHz Out One Console port USB 2.0 storage interface
Power	2x 1600 AC/DC power supply	4x 1600 AC/DC power supply	4x 1600 AC/DC power supply
Cooling	Front-to-back airflow 3 hot-swappable fan modules with redundant fans
Total packet buffer	12 GB	24 GB	24 GB
Latency	As low as 2.5 microseconds within a PFE As low as 5.5 microseconds across PFEs
Warranty	Juniper standard one-year warranty

	QFX10002-36Q	QFX10002-72Q	QFX10002-60C
Media access control (MAC) addresses	Up to 256,000; up to 96,000 learned per PFE	Up to 512,000; up to 96,000 learned per PFE	Up to 1 million
ARP entries	Up to 192,000, or 64,000 per PFE	Up to 340,000, or 64,000 per PFE	Up to 340,000, or 64,000 per PFE
Jumbo frames	9,216 bytes maximum
VLANs	4,000
Forwarding information base (FIB) (IPv4/IPv6)	Up to 2 million
Routing Information Base (RIB) (v4)	10 million	10 million	20 million
Routing Information Base (RIB) (v6)	4 million	4 million	6 million
Host routes	Up to 2 million
ECMP	64-way
IPv4 multicast routes	Up to 128,000
IPv6 multicast routes	Up to 128,000
Multicast groups	Up to 128,000
Filters	Up to 8,000
Filter terms	Up to 64,000
Policers	Up to 8,000
Output queues per port	8
VOQs	384,000 per PFE	384,000 per PFE	192,000 per PFE
LAGs	72	144	192
Members per LAG	64
BGP neighbors (Premium Feature License)	1,024
Generic routing encapsulation (GRE) tunnels	2,000	2,000	3000
MPLS L3 VPNs (Advanced Feature License)	4,000
LSPs (ingress/egress/transit) (Advanced Feature License)	4,000	4,000	16,000

Model:	QFX10002- 36Q	QFX10002- 72Q
System Capacity
System throughput	Up to 2.88 Tbps	Up to 5.76 Tbps
Forwarding capacity	Up to 1 Bpps	Up to 2 Bpps
Maximum 10GbE port density	144	288
Maximum 40GbE port density	36	72
Maximum 100GbE port density	12	24
Chassis Specifications
Dimensions (H x W x D)	17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)	17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)
Rack units	2 U	2 U
Weight	50 lbs. (23 Kg)	68.6 lbs. (31 Kg)
CPU	Intel Quad Core Ivy Bridge 2.5 GHz CPU, 16 GB SDRAM
Management and Precision Time Protocol (PTP) interfaces	1 small form-factor pluggable transceiver (SFP/SFP +) port for PTP Grandmaster Fiber (SFP) or 10/100/1000BaseT (RJ45) Ethernet management port SMB In, SMB Out, 10 MHz In, 10 MHz Out One Console port USB 2.0 storage interface
Power	2x 1600 AC/DC power supply	4x 1600 AC/DC power supply
Control Board	Front-to-back airflow 3 hot-swappable fan modules with redundant fans
Total packet buffer	12 GB	24 GB
Latency	As low as 2.5 microseconds within a PFE As low as 5.5 microseconds across PFEs
Warranty	Juniper standard one-year warranty
Software
Media access control (MAC) addresses	Up to 256,000; up to 96,000 learned per PFE	Up to 512,000; up to 96,000 learned per PFE
ARP entries	Up to 192,000, or 64,000 per PFE	Up to 340,000, or 64,000 per PFE
Jumbo frames	9,216 Bytes maximum
VLANs	4,000
Forwarding information base (FIB) (IPv4/IPv6)	Up to 2 million
Routing Information Base (RIB) (v4)	10 million
Routing Information Base (RIB) (v6)	4 million
Host routes	Up to 2 million
ECMP	64-way
IPv4 Multicast routes	Up to 128,000
IPv6 Multicast routes	Up to 128,000
Multicast groups	Up to 128,000
Filters	Up to 8,000
Filter terms	Up to 64,000
Policers	Up to 8,000
Output queues per port	8
Virtual Output Queues	384,000 per PFE
Link aggregation groups (LAG)	72	144
Members / LAG	64
BGP neighbors (Premium Feature License)	1,024
GRE tunnels	2,000
MPLS Layer 3 VPNs (Advanced Feature License)	4,000
LSPs (ingress/egress/transit) (Advanced Feature License)	4,000
Environmental Ranges
Operating temperature	32° to 104° F (0° to 40° C)
Storage temperature	-40° to 158° F (-40° to 70° C)
Operating altitude	Up to 10,000 ft (3,048 m)
Relative humidity operating	5% to 90% (noncondensing)
Relative humidity non-operating	5% to 95% (noncondensing)
Seismic	Designed to meet GR-63, Zone 4 earthquake requirements
Maximum Thermal Output (estimated, subject to change)
Maximum power draw	800 W (AC, DC), 2,730 BTU/hr	1,425 W (AC, DC), 4,862 BTU/hr
Typical power draw	560 W (AC, DC), 1,911 BTU/hr	1,050 W (AC, DC), 3,583 BTU/hr

Additional Feature Specifications:

Layer 2 Features

802.1D – Spanning Tree Protocol (STP)
802.1w – Rapid Spanning Tree Protocol (RSTP)
802.1s – Multiple Spanning Tree Protocol (MSTP)
VLAN Spanning Tree Protocol (VSTP)
802.1AB Link Layer Discovery Protocol (LLDP)
VLAN Registration Protocol
QinQ

Link Aggregation

802.3ad – Link Aggregation Control Protocol (LACP)
Multi-chassis Link Aggregation (MC-LAG)

Layer 3 Features

Static routing
RIP v1/v2
OSPF v1/v2
OSPF v3
Filter-based forwarding
Virtual Router Redundancy Protocol (VRRP)
IPv6
Bidirectional Forwarding Detection (BFD)
Virtual routers
Unicast reverse path forwarding (uRPF)
Loop-free alternate (LFA)
BGP (Premium Feature license or Advanced Feature license)
IS-IS (Premium Feature license or Advanced Feature license)
Dynamic Host Configuration Protocol (DHCP) v4/v6 relay
VR-aware DHCP
IPv4 / IPv6 over GRE tunnels (interface-based)

Multicast Features

Internet Group Management Protocol (IGMP) v1/v2/v3
Multicast Listener Discovery (MLD) v1/v2
IGMP Proxy, Querier
IGMP snooping
MLD snooping
Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM
Multicast Source Discovery Protocol (MSDP)

Firewall Filters

Ingress and egress L2-L4 access control lists (ACLs):
- Port ACLs
- VLAN ACLs
- Router ACLs
Control plane denial-of-service (DoS) protection

Quality of Service (QoS)

Single rate three color policer
Two rate three-color policer
Congestion prevention:
- Weighted random early detection (WRED)
- Tail drop
- Explicit congestion notification (ECN) marking
Priority-based scheduling:
- Low-latency queuing with strict high priority
- Weighted round-robin (WRR) queuing

MPLS (Advanced Feature License)

LDP
RSVP
LDP tunneling (LDP over RSVP)
Fast reroute (FRR)
IPv6 tunneling (6PE)
Ingress, transit, and egress label-switched paths (LSPs)
IPv4 Layer 3 VPNs
IPv6 Layer 3 VPNs (6VPE)
Layer 2 circuits

Overlays (Premium Feature License or Advanced Feature License)

Integration with Juniper Networks Contrail*
Integration with VMware NSX SDN controller*
VXLAN
Open vSwitch Database (OVSDB)
VXLAN L2 and L3 gateway
Ethernet VPN (EVPN)-VXLAN

High Availability

Graceful Routing Engine switchover (GRES)
BFD

Timing

Precision Timing Protocol (PTP)
- Transparent clock
- Boundary Clock*

Visibility

Switched Port Analyzer (SPAN)
Remote SPAN (RSPAN)
Encapsulated Remote SPAN (ERSPAN)
Firewall filter-based port mirroring
sFlow v5

Data Center Bridging

Priority-based flow control (PFC)—IEEE 802.1Qbb
Data Center Bridging Exchange Protocol (DCBX), DCBx FCoE, and iSCSI type, length, and value (TLVs)

Management and Operations

Junos Space Network Director
Junos OS CLI via console, telnet, SSH
Out-of-band management: Serial; 10/100/1000BASE-T Ethernet
Role-based CLI management and access
Junos XML management protocol
ASCII configuration file
SNMP v1/v2/v3
RADIUS
TACACS+
Extensive MIB support
Junos OS configuration rescue and rollback
Image rollback
OpenStack Neutron Plug-in
Puppet
Chef
Python
Junos OS event, commit and OP scripts
RMON (RFC 2819): Groups 1, 2, 3, 9
Network Time Protocol (NTP)
SSHv2
Secure copy
DNS resolver
System logging
Environment monitoring
Temperature sensor
Configuration backup via FTP/secure copy

Troubleshooting

Debugging: CLI via console, telnet, or SSH
Diagnostics: Show, debug, and statistics commands
Port mirroring
IP tools: Extended ping and trace
Juniper Networks commit and rollback

IEEE Compliance

IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
IEEE 802.1ad: QinQ
IEEE 802.1D-2004: Spanning Tree Protocol (STP)
IEEE 802.1p: Class-of-service (CoS) prioritization
IEEE 802.1Q: Virtual Bridged Local Area Networks
IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-T
IEEE 802.3ab: 1000BASE-T
IEEE 802.3z: 1000BASE-X
IEEE 802.3ae: 10-Gigabit Ethernet
IEEE 802.3ba: 40-Gigabit/100-Gigabit Ethernet
IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
IEEE 802.1Qbb: Priority-based Flow Control
IEEE 802.1Qaz: Enhanced Transmission Selection

RFC Compliance

RFC 768: UDP
RFC 783: Trivial File Transfer Protocol (TFTP)
RFC 791: IP
RFC 792: Internet Control Message Protocol (ICMP)
RFC 793: TCP
RFC 826: ARP
RFC 854: Telnet client and server
RFC 894: IP over Ethernet
RFC 903: Reverse Address Resolution Protocol (RARP)
RFC 906: TFTP Bootstrap
RFC 951, 1542: BootP
RFC 1027: Proxy ARP
RFC 1058: RIP v1
RFC 1112: IGMP v1
RFC 1122: Host Requirements
RFC 1142: OSI IS-IS Intra-domain Routing Protocol
RFC 1256: IPv4 ICMP Router Discovery Protocol (IRDP)
RFC 1492: TACACS+
RFC 1519: Classless Interdomain Routing (CIDR)
RFC 1587: OSPF NSSA Option
RFC 1591: Domain Name System (DNS)
RFC 1745: BGP4/IDRP for IP-OSPF Interaction
RFC 1765: OSPF Database Overflow
RFC 1771: Border Gateway Protocol 4
RFC 1772: Application of the Border Gateway Protocol in the Internet
RFC 1812: Requirements for IP Version 4 Routers
RFC 1965: Autonomous System Confederations for BGP
RFC 1981: Path maximum transmission unit (MTU) discovery for IPv6
RFC 1997: BGP Communities Attribute
RFC 2030: Simple Network Time Protocol (SNTP)
RFC 2068: HTTP server
RFC 2080: RIPng for IPv6
RFC 2081: RIPng Protocol Applicability Statement
RFC 2131: BOOTP/Dynamic Host Configuration Protocol (DHCP) relay agent and DHCP server
RFC 2138: RADIUS Authentication
RFC 2139: RADIUS Accounting
RFC 2154: OSPF with Digital Signatures (password, Message Digest 5)
RFC 2236: IGMP v2
RFC 2267: Network Ingress Filtering
RFC 2270: BGP-4 Dedicated autonomous system (AS) for sites/single provider
RFC 2283: Multiprotocol Extensions for BGP-4
RFC 2328: OSPF v2 (Edge mode)
RFC 2338: VRRP
RFC 2362: PIM-SM (Edge mode)
RFC 2370: OSPF Opaque LSA Option
RFC 2373: IPv6 Addressing Architecture
RFC 2375: IPv6 Multicast Address Assignments
RFC 2385: TCP MD5 Authentication for BGPv4
RFC 2439: BGP Route Flap Damping
RFC 2453: RIP v2
RFC 2460: Internet Protocol, v6 (IPv6) specification
RFC 2461: Neighbor Discovery for IP Version 6 (IPv6)
RFC 2462: IPv6 Stateless Address Autoconfiguration
RFC 2463: ICMPv6
RFC 2464: Transmission of IPv6 Packets over Ethernet Networks
RFC 2474: DiffServ Precedence, including 8 queues/port
RFC 2526: Reserved IPv6 Subnet Anycast Addresses
RFC 2545: Use of BGP-4 Multiprotocol Extensions for IPv6 Interdomain Routing
RFC 2547: BGP/MPLS VPNs
RFC 2597: DiffServ Assured Forwarding (AF)
RFC 2598: DiffServ Expedited Forwarding (EF)
RFC 2697: A Single Rate Three Color Marker
RFC 2698: A Two Rate Three Color Marker
RFC 2710: Multicast Listener Discovery (MLD) for IPv6
RFC 2711: IPv6 Router Alert Option
RFC 2740: OSPF for IPv6
RFC 2796: BGP Route Reflection (supersedes RFC 1966)
RFC 2796: Route Reflection
RFC 2858: Multiprotocol Extensions for BGP-4
RFC 2893: Transition Mechanisms for IPv6 Hosts and Routers
RFC 2918: Route Refresh Capability for BGP-4
RFC 3031: Multiprotocol Label Switching Architecture
RFC 3032: MPLS Label Stack Encoding
RFC 3036: LDP Specification
RFC 3065: Autonomous System Confederations for BGP
RFC 3176: sFlow
RFC 3215: LDP State Machine
RFC 3306: Unicast Prefix-based IPv6 Multicast Addresses
RFC 3376: IGMP v3
RFC 3392: Capabilities Advertisement with BGP-4
RFC 3446: Anycast Rendevous Point (RP) Mechanism using PIM and MSDP
RFC 3478: Graceful Restart for Label Distribution Protocol
RFC 3484: Default Address Selection for IPv6
RFC 3513: Internet Protocol Version 6 (IPv6) Addressing
RFC 3569: PIM-SSM PIM Source Specific Multicast
RFC 3587: IPv6 Global Unicast Address Format
RFC 3618: Multicast Source Discovery Protocol (MSDP)
RFC 3623: OSPF Graceful Restart
RFC 3768: Virtual Router Redundancy Protocol (VRRP)
RFC 3810: Multicast Listener Discovery Version 2 (MLDv2) for IP
RFC 3973: PIM-Dense Mode
RFC 4213: Basic Transition Mechanisms for IPv6 Hosts and Routers
RFC 4291: IPv6 Addressing Architecture
RFC 4360: BGP Extended Communities Attribute
RFC 4364: BGP/MPLS IP Virtual Private Networks (VPNs)
RFC 4443: ICMPv6 for the IPv6 specification
RFC 4486: Sub codes for BGP Cease Notification message
RFC 4552: Authentication/Confidentiality for OSPFv3
RFC 4604: Using Internet Group Management Protocol Version 3 (IGMPv3)
RFC 4724: Graceful Restart Mechanism for BGP
RFC 4798: Connecting IPv6 Islands over IPv4 MPLS Using IPv6 Provider Edge Routers (6PE)
RFC 4861: Neighbor Discovery for IPv6
RFC 4862: IPv6 Stateless Address Autoconfiguration
RFC 5095: Deprecation of Type 0 Routing Headers in IPv6
RFC 5286, Basic Specification for IP Fast Reroute: Loop-Free Alternates
RFC 5306: Restart Signaling for IS-IS
RFC 5308: Routing IPv6 with IS-IS
RFC 5340: OSPF for IPv6
RFC 5880: Bidirectional Forwarding Detection

Network Management—MIB Support

RFC 1155: Structure of Management Information (SMI)
RFC 1157: SNMPv1
RFC 1212, RFC 1213, RFC 1215: MIB-II, Ethernet-like MIB, and traps
RFC 1657: BGP-4 MIB
RFC 1724: RIPv2 MIB
RFC 1850: OSPFv2 MIB
RFC 1901: Introduction to Community-based SNMPv2
RFC 1902: Structure of Management Information for Version 2 of the Simple Network Management Protocol (SNMPv2)
RFC 1905, RFC 1907: SNMP v2c, SMIv2, and Revised MIB-II
RFC 2011: SNMPv2 for IP using SMIv2
RFC 2012: SNMPv2 for transmission control protocol using SMIv2
RFC 2013: SNMPv2 for user datagram protocol using SMIv2
RFC 2096: IPv4 Forwarding Table MIB
RFC 2287: System Application Packages MIB
RFC 2465: Management Information Base for IP Version 6
RFC 2570–2575: SNMPv3, user-based security, encryption, and authentication
RFC 2576: Coexistence between SNMP Version 1, Version 2, and Version 3
RFC 2578: SNMP Structure of Management Information MIB
RFC 2579: SNMP Textual Conventions for SMIv2
RFC 2665: Ethernet-like interface MIB
RFC 2787: VRRP MIB
RFC 2819: RMON MIB
RFC 2863: Interface Group MIB
RFC 2863: Interface MIB
RFC 2922: LLDP MIB
RFC 2925: Ping/Traceroute MIB
RFC 2932: IPv4 Multicast MIB
RFC 3410: Introduction and Applicability Statements for Internet Standard Management Framework
RFC 3411: An architecture for describing SNMP Management Frameworks
RFC 3412: Message Processing and Dispatching for the SNMP
RFC 3413: SNMP Application MIB
RFC 3414: User-based Security Model (USM) for version 3 of SNMPv3
RFC 3415: View-based Access Control Model (VACM) for the SNMP
RFC 3416: Version 2 of the Protocol Operations for the SNMP
RFC 3417: Transport Mappings for the SNMP
RFC 3418: Management Information Base (MIB) for the SNMP
RFC 3584: Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework
RFC 3826: The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP
RFC 4188: STP and Extensions MIB
RFC 4363: Definitions of Managed Objects for Bridges with traffic classes, multicast filtering, and VLAN extensions
Draft-ietf-idr-bgp4-mibv2-02.txt: Enhanced BGP-4 MIB
Draft-ietf-isis-wg-mib-07
Draft-reeder-snmpv3-usm-3desede-00
Draft-ietf-idmr-igmp-mib-13
Draft-ietf-idmr-pim-mib-09
Draft-ietf-bfd-mib-02.txt

Safety and Compliance

Safety

CAN/CSA-C22.2 No. 60950-1 Information Technology Equipment—Safety
UL 60950-1 Information Technology Equipment—Safety
EN 60950-1 Information Technology Equipment—Safety
IEC 60950-1 Information Technology Equipment—Safety (All country deviations)
EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification

Electromagnetic Compatibility

47CFR Part 15, (FCC) Class A
ICES-003 Class A
EN 55022 Class A
CISPR 22 Class A
EN 55024
CISPR 24
EN 300 386
VCCI Class A
AS/NZA CISPR22 Class A
KN22 Class A
CNS 13438 Class A
EN 61000-3-2
EN 61000-3-3

ETSI

ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment
ETSI EN 300 019-2-1 (2000)—Storage
ETSI EN 300 019-2-2 (1999)—Transportation
ETSI EN 300 019-2-3 (2003)—Stationary Use at Weatherprotected Locations
ETSI EN 300 019-2-4 (2003)—Stationary Use at NonWeather-protected Locations
ETS 300753 (1997)—Acoustic noise emitted by telecommunications equipment

Environmental Compliance

Restriction of Hazardous Substances (ROHS) 6/6
China Restriction of Hazardous Substances (ROHS)
Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
Waste Electronics and Electrical Equipment (WEEE)
Recycled material
80 Plus Silver PSU Efficiency

Telco

Common Language Equipment Identifier (CLEI) code

Views:

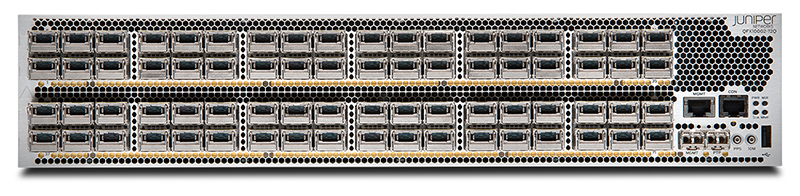

Top Front View

Front View

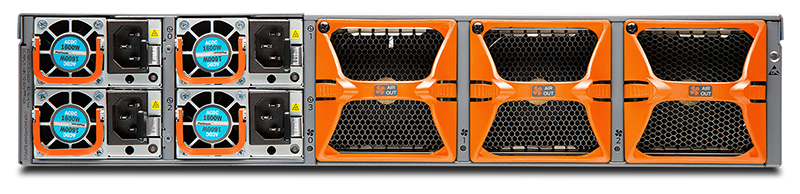

Rear View

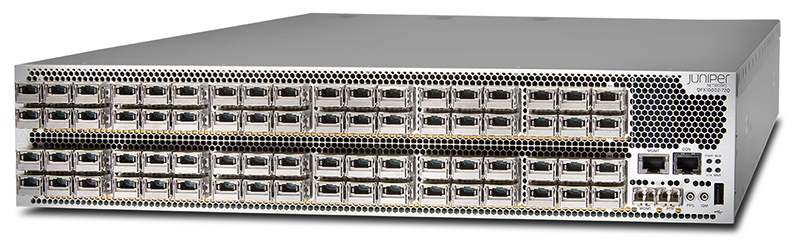

Left Angle View

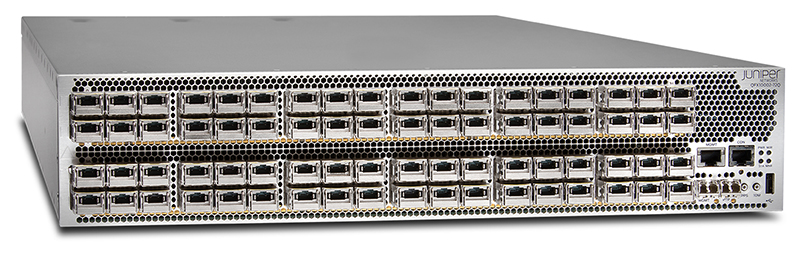

Right Angle View

Documentation:

Download the Juniper Networks QFX10002 Fixed Ethernet Switch Data Sheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.

Juniper Products

QFX10002 Fixed Ethernet Switch

QFX10002 System with 36-Port 40G QSFP+ / 12-port 100G QSFP28 / 144-Port 10G SFP+ with 2 1600W AC Power Supplies, 2 Power Cables and3 Fan Trays

#QFX10002-36Q
List Price: ~~$54,945.00~~
Our Price: ~~$44,230.73~~
Call For Lowest Price!

QFX10002 System with 36-port 40G QSFP+ / 12-port 100G QSFP28 / 144-port 10G SFP+ with 2 1600W DC Power Supplies, 2 power cables and 3 Fan Trays

#QFX10002-36Q-DC
List Price: ~~$56,166.00~~
Our Price: ~~$45,213.63~~
Call For Lowest Price!

QFX10002 System with 72-Port 40G QSFP+ / 24-Port 100G QSFP28 / 288-Port 10G SFP+ with 4 1600W AC Power Supplies, 4 Power Cables and3 Fan Trays

#QFX10002-72Q
List Price: ~~$109,890.00~~
Our Price: ~~$88,461.45~~
Call For Lowest Price!

QFX10002 System with 72-port 40G QSFP+ / 24-port 100G QSFP28 / 288-port 10G SFP+ with 4 1600W DC Power Supplies, 4 power cables and 3 Fan Trays

#QFX10002-72Q-DC
List Price: ~~$112,332.00~~
Our Price: ~~$90,427.26~~
Call For Lowest Price!

Juniper Care for QFX10002-72Q & QFX10002-72Q-DC

Juniper Care Core Support for QFX10002-72Q & QFX10002-72Q-DC

#SVC-COR-QFX02-72Q
List Price: ~~$11,204.00~~
Our Price: $9,523.40

Juniper Care Core Plus Support for QFX10002-72Q & QFX10002-72Q-DC

#SVC-CP-QFX02-72Q
List Price: ~~$12,604.00~~
Our Price: $10,713.40

Juniper Care Next Day Support for QFX10002-72Q & QFX10002-72Q-DC

#SVC-ND-QFX02-72Q
List Price: ~~$14,005.00~~
Our Price: $11,904.25

Juniper Care Next Day Onsite Support for QFX10002-72Q & QFX10002-72Q-DC

#SVC-NDCE-QFX02-72Q
List Price: ~~$17,506.00~~
Our Price: $14,880.10

Juniper Care Same Day Support for QFX10002-72Q & QFX10002-72Q-DC

#SVC-SD-QFX02-72Q
List Price: ~~$22,406.00~~
Our Price: ~~$19,045.10~~
Call For Lowest Price!

Juniper Care Same Day Onsite Support for QFX10002-72Q & QFX10002-72Q-DC

#SVC-SDCE-QFX02-72Q
List Price: ~~$28,009.00~~
Our Price: ~~$23,807.65~~
Call For Lowest Price!

Juniper Care for QFX10002-72Q-T

Juniper Care Core Support for QFX10002-72Q-T

#SVC-COR-QFX0272QT
List Price: ~~$11,675.00~~
Our Price: $9,923.75

Juniper Care Core Plus Support for QFX10002-72Q-T

#SVC-CP-QFX0272QT
List Price: ~~$13,134.00~~
Our Price: $11,163.90

Juniper Care Next Day Support for QFX10002-72Q-T

#SVC-ND-QFX0272QT
List Price: ~~$14,593.00~~
Our Price: $12,404.05

Juniper Care Next Day Onsite Support for QFX10002-72Q-T

#SVC-NDCE-QFX0272QT
List Price: ~~$18,242.00~~
Our Price: ~~$15,505.70~~
Call For Lowest Price!

Juniper Care Same Day Support for QFX10002-72Q-T

#SVC-SD-QFX0272QT
List Price: ~~$23,349.00~~
Our Price: ~~$19,846.65~~
Call For Lowest Price!

Juniper Care Same Day Onsite Support for QFX10002-72Q-T

#SVC-SDCE-QFX0272QT
List Price: ~~$29,187.00~~
Our Price: ~~$24,808.95~~
Call For Lowest Price!

Spare

PTX1000 1600 W AC power supply

#JPSU-1600W-AC-AFO
List Price: ~~$6,410.00~~
Our Price: $5,160.05

PTX1000 1600 W DC power supply

#JPSU-1600W-DC-AFO
List Price: ~~$7,692.00~~
Our Price: $6,192.06

QFX10002 Fan tray

#QFX10002-FAN
List Price: ~~$1,221.00~~
Our Price: $982.91

Optics and Transceivers

SFP 10/100/1000BASE-T copper; RJ-45 connector; 100 m reach on UTP

#EX-SFP-1GE-T
List Price: ~~$525.00~~
Our Price: $422.63

SFP 1000BASE-SX; LC connector; 850 nm; 550 m reach on multimode fiber

#EX-SFP-1GE-SX
List Price: ~~$653.00~~
Our Price: $525.67

SFP 1000BASE-LX; LC connector; 1310 nm; 10 km reach on single-mode fiber

#EX-SFP-1GE-LX
List Price: ~~$1,400.00~~
Our Price: $1,127.00

SFP+ 10GbE ultra short reach; 850 nm; 10 m on OM1, 20 m on OM2, 100 m on OM3 multi-mode fiber-optic (MMF)

#EX-SFP-10GE-USR
List Price: ~~$980.00~~
Our Price: $788.90

Small form-factor pluggable transceiver (SFP transceiver) 10GbE (SFP+ transceiver) short reach (SR) optics

#EX-SFP-10GE-SR
List Price: ~~$1,983.00~~
Our Price: $1,596.32

SFP transceiver 10GbE (SFP+ transceiver) long reach (LR) optics

#EX-SFP-10GE-LR
List Price: ~~$5,249.00~~
Our Price: $4,225.45

SFP+ 10GBASE-ER 10GbE optics module, 1550 nm for 40 km transmission

#EX-SFP-10GE-ER
List Price: ~~$13,064.00~~
Our Price: $10,516.52

QSFP+ 40GBASE-eSR4 40 gigabit optics, 850 nm for up to 300 m transmission on MMF

#QFX-QSFP-40G-ESR4
List Price: ~~$1,531.00~~
Our Price: $1,232.46

QSFP+ 40GBASE-SR4 40 gigabit optics, 850 nm for up to 150 m transmission on MMF

#QFX-QSFP-40G-SR4
List Price: ~~$864.00~~
Our Price: $695.52

QSFP+ 40GBASE-LR4 40 gigabit optics for up to 1 km transmission over SMF

#JNP-QSFP-40GE-IR4
List Price: ~~$4,349.00~~
Our Price: $3,500.95

QSFP+ 40GBASE-LR4 40 gigabit optics for up to 10 km transmission on SMF

#JNP-QSFP-40G-LR4
List Price: ~~$4,567.00~~
Our Price: $3,676.44

QSFP+ 40GBASE-LX4 40 gigabit optics for up to 150 m transmission with OM4 over duplex MMF

#JNP-QSFP-40G-LX4
List Price: ~~$5,128.00~~
Our Price: $4,128.04

QSFP+ 40GBASE-LR4 40 gigabit optics for up to 1 km transmission over parallel SMF

#JNP-QSFP-4X10GE-IR
List Price: ~~$4,357.00~~
Our Price: $3,507.39

Quad small form-factor pluggable transceiver plus (QSFP+ transceiver) 40GBase optics, up to 10 km transmission on parallel single mode (4X10GbE LR up to 10 km)

#JNP-QSFP-4X10GE-LR
List Price: ~~$4,565.00~~
Our Price: $3,674.83

QSFP28 100GBASE-SR4 optics for up to 100 m transmission over parallel MMF

#JNP-QSFP-100G-SR4
List Price: ~~$8,392.00~~
Our Price: $6,755.56

QSFP28 100GBASE-L4 optics for up to 10 km transmission over serial SMF

#JNP-QSFP-100G-LR4
List Price: ~~$51,282.00~~
Our Price: ~~$41,282.01~~
Call For Lowest Price!

QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF

#JNP-QSFP-100G-PSM4
List Price: ~~$4,911.00~~
Our Price: $3,953.36

QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF

#JNP-QSFP-100G-CWDM
List Price: ~~$35,897.00~~
Our Price: ~~$28,897.09~~
Call For Lowest Price!

SFP+ 10GbE Direct Attach Copper (twinax copper cable), 1m

#QFX-SFP-DAC-1M
List Price: ~~$199.00~~
Our Price: $160.20

SFP+ 10GbE Direct Attach Copper (twinax copper cable), 3m

#QFX-SFP-DAC-3M
List Price: ~~$280.00~~
Our Price: $225.40

SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 5m

#QFX-SFP-DAC-5M
List Price: ~~$339.00~~
Our Price: $272.90

SFP+ 10GbE direct attach copper (active twinax copper cable) 1 m

#QFX-SFP-DAC-1MA
List Price: ~~$256.00~~
Our Price: $206.08

SFP+ 10GbE direct attach copper (active twinax copper cable) 3 m

#QFX-SFP-DAC-3MA
List Price: ~~$339.00~~
Our Price: $272.90

SFP+ 10GbE direct attach copper (active twinax copper cable) 5 m

#QFX-SFP-DAC-5MA
List Price: ~~$362.00~~
Our Price: $291.41

SFP+ 10GbE direct attach copper (active twinax copper cable) 7 m

#QFX-SFP-DAC-7MA
List Price: ~~$385.00~~
Our Price: $309.93

SFP+ 10GbE direct attach copper (active twinax copper cable) 10 m

#QFX-SFP-DAC-10MA
List Price: ~~$455.00~~
Our Price: $366.28

QSFP+ Cable Assy, 1 m, 30 AWG, passive, programmable ID

#QFX-QSFP-DAC-1M
List Price: ~~$385.00~~
Our Price: $309.93

QSFP+ Cable Assembly, 3 m, 30 AWG, passive, programmable ID

#QFX-QSFP-DAC-3M
List Price: ~~$513.00~~
Our Price: $412.97

QSFP+ 40GBase direct attach copper Cable 5-meter, passive

#JNP-QSFP-DAC-5M
List Price: ~~$1,282.00~~
Our Price: $1,032.01

QSFP+ 40GBASE direct attach copper cable 5 m, active

#JNP-QSFP-DAC-5MA
List Price: ~~$1,515.00~~
Our Price: $1,219.58

QSFP+ 40GBASE direct attach copper cable 7 m, active

#JNP-QSFP-DAC-7MA
List Price: ~~$1,748.00~~
Our Price: $1,407.14

QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 1 m

#QFX-QSFP-DACBO-1M
List Price: ~~$513.00~~
Our Price: $412.97

QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 5 m, active

#JNP-QSFP-DACBO-5MA
List Price: ~~$1,632.00~~
Our Price: $1,313.76

QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 7 m, active

#JNP-QSFP-DACBO-7MA
List Price: ~~$1,981.00~~
Our Price: $1,594.71

QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 10 m, active

#JNP-QSFP-DACBO-10M
List Price: ~~$2,214.00~~
Our Price: $1,782.27

Juniper Networks QFX10002-72Q High-Density, Highly Scalable, Future-Proofed Spine Switches Optimized for the Cloud
