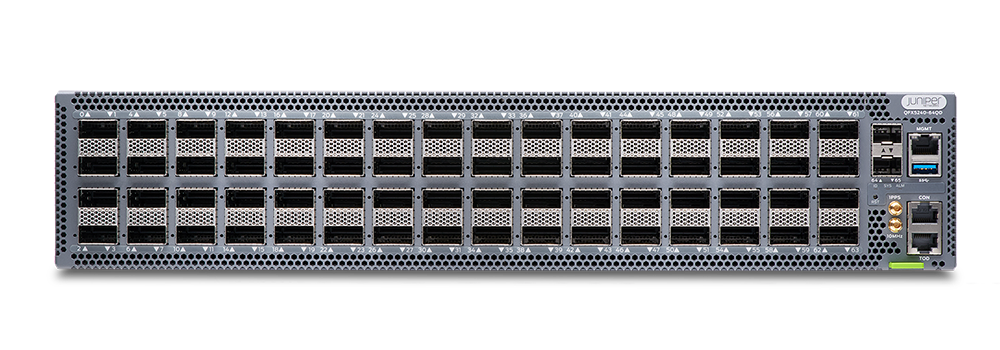

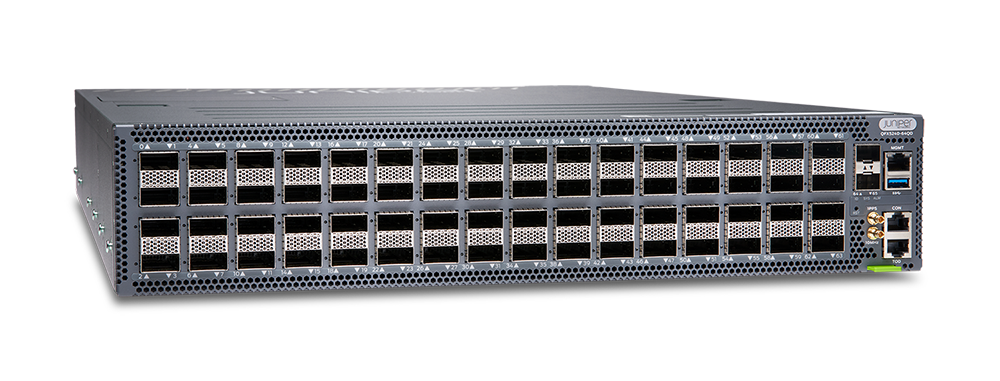

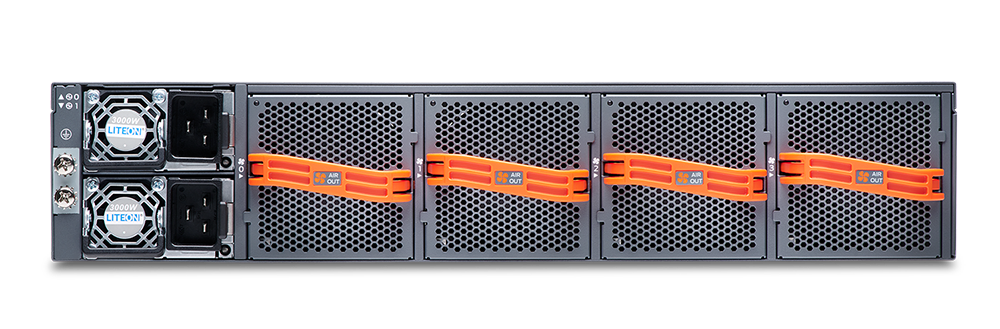

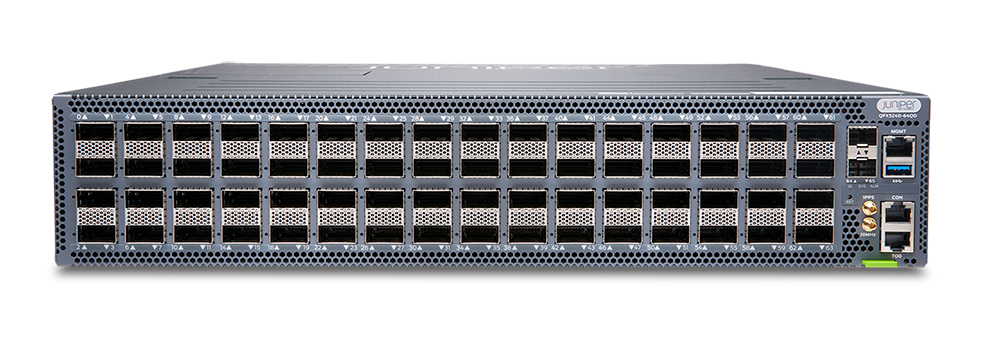

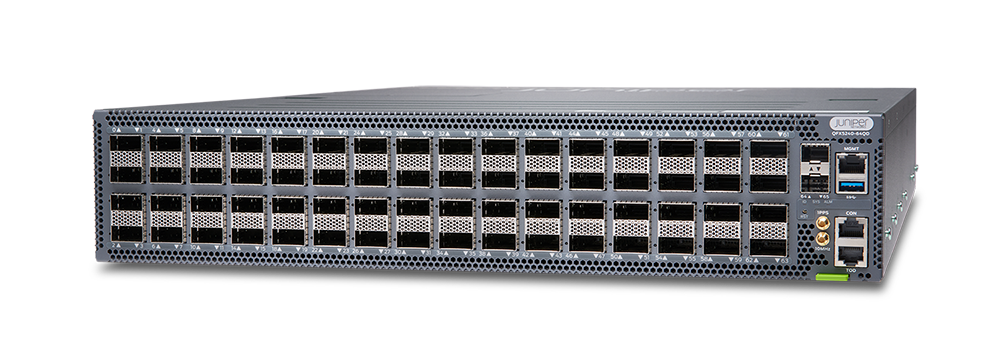

Juniper Networks QFX5240-64QD
64 x QSFP-DD 800GbE Switch
Includes 4-post Tool-less RMK, AC PSU, FAN (front-to-back air-flow)
Does not include PSU, FAN, or RMK
Click here to jump to more pricing!
Overview:
The QFX5240 Switches meet the advanced AI data center networking requirements of large-scale clusters. QFX5240 switches work with the automation—such as Juniper Apstra—to assure daily operation in AI and ML workload training and access.
QFX5240 Switches:
- deliver high-density 800GbE ports on a fixed form factor with software to provide advanced network services tuned to the specific needs of AI/ML workloads
- are a foundation of AI networks, and their low latencies ensure fast job completion time (JCT) to speed training through high GPU utilization
- help teams managing AI/ML environments realize improved economics
Product Description
Continuous evolution of AI/ML technology along with new applications are driving the next major shift in bandwidth requirement within the data center fabric. Juniper Networks QFX5240 800GbE switch (64 port 800GbE) is a next-generation, fixed-configuration platform designed for spine, leaf, and border switch roles. The switch provides flexible, cost-effective, high-density 800GbE, 400GbE, 100GbE, and 50GbE interfaces for intra-IP fabric connectivity as well as higher density 200/400GbE NIC connectivity for AI/ML use cases. It’s 51.2Tbps unidirectional throughput meets the bandwidth requirement of AI/ML workloads and storage systems with latency in the range of 700-750ns (store and forward). Remote Direct Memory Access (RDMA) is the de-facto data transfer technology used in AI/ML workloads, and it uses Remote Direct Memory Access over Converged Ethernet v2 (ROCEv2) for transport at the network layer. QFX5240 supports ROCEv2 along with congestion management features like Priority Flow Control (PFC), explicit congestion notification (ECN), and data center quantized congestion notification (DCQCN).
The QFX5240 helps reduce the number of network nodes deployed—decreasing the total power consumption of the data center fabric and improving the carbon footprint of the data center. These improvements are possible by having different breakout options like 128x400GbE, 256x200GbE, and 320x100GbE.
Product Highlights
AI Data Center
- Leaf/spine in AI/ML cluster
- ROCEv2 for AI/ML workloads
- DCQCN-PFC, ECN for congestion management
- Support for PFC watchdog for storm avoidance
- Dynamic load balancing (DLB) for better load balancing
- Configurable hash-bucket size to suit different flow scale
- Selective-DLB - enable/disable DLB based on opcode/byte match
Cloud-ready Data Center
- Leaf/spine in IP fabric
- Leaf/spine/super spine in EVPN-VXLAN fabric
- Support for EVPN-VXLAN
- 136K MAC scale
- 860K IPv4 route scale
Port Options
- 64 ports of 800GbE
- 128 ports of 400GbE (achieved with breakout cable)
- 256 ports of 200GbE (achieved with breakout cable)
- 320 ports of 100GbE (achieved with breakout cable)
Platform Parameters
- Throughput: 51.2Tbps unidirectional
- Buffer: 165MB
- Tool less rack mount kit
- Hot swappable power supplies and FAN trays
- Power supply redundancy
- Remote power cycling capability
Pricing Notes:
- Pricing and product availability subject to change without notice.
Includes 4-post Tool-less RMK, AC PSU, FAN (front-to-back air-flow)
Does not include PSU, FAN, or RMK
