Juniper Networks SRX300 Services Gateway
Secure Connectivity Services Gateways for The Cloud-Enabled Enterprise

SRX300 Overview:

The SRX300 line of services gateways combines security, routing, switching, and WAN interfaces with next-generation firewall and advanced threat mitigation capabilities for costeffective, secure connectivity across distributed enterprise locations. By consolidating fast, highly available switching, routing, security, and next-generation firewall capabilities in a single device, enterprises can remove network complexity, protect and prioritize their resources, and improve user and application experience while lowering total cost of ownership (TCO).

Product Description

Juniper Networks SRX300 line of services gateways delivers a next-generation networking and security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy to manage, secure connectivity and advanced threat mitigation capabilities. Next-generation firewall and unified threat management (UTM) capabilities also make it easier to detect and proactively mitigate threats to improve the user and application experience.

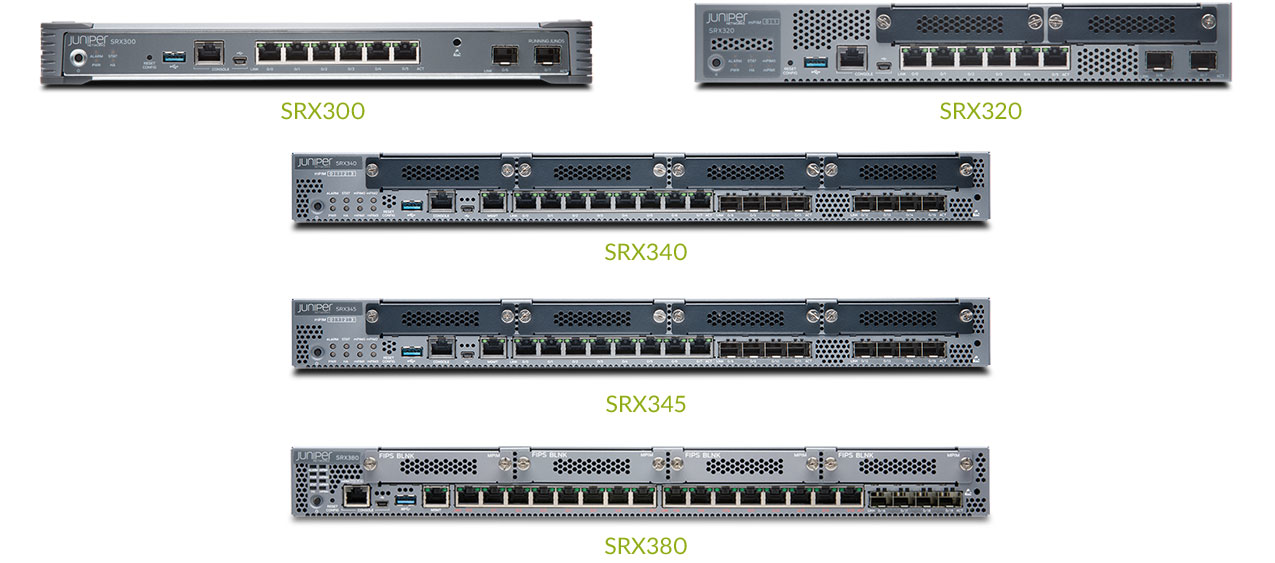

The SRX300 line consists of four models:

• SRX300: Securing small branch or retail offices, the SRX300 Services Gateway consolidates security, routing, switching, and WAN connectivity in a small desktop device. The SRX300 supports up to 1 Gbps firewall and 300 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
• SRX320: Securely connecting small distributed enterprise branch offices, the SRX320 Services Gateway consolidates security, routing, switching, and WAN connectivity in a small desktop device. The SRX320 supports up to 1 Gbps firewall and 300 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
• SRX340: Securely connecting midsize distributed enterprise branch offices, the SRX340 Services Gateway consolidates security, routing, switching, and WAN connectivity in a 1 U form factor. The SRX340 supports up to 3 Gbps firewall and 600 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
• SRX345: Best suited for midsize to large distributed enterprise branch offices, the SRX345 Services Gateway consolidates security, routing, switching, and WAN connectivity in a 1 U form factor. The SRX345 supports up to 5 Gbps firewall and 800 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
• SRX380: A high-performance and secure SD-WAN gateway, the SRX380 offers superior and reliable WAN connectivity while consolidating security, routing, and switching for distributed enterprise offices. The SRX380 features greater port density than other SRX300 models, with 16x1GbE PoE+ and 4x10GbE ports, and includes redundant dual power supplies, all in a 1 U form factor.

Highlights

The SRX300 line of services gateways consists of secure SD-WAN routers that bring high performance and proven deployment capabilities to enterprises that need to build a worldwide network of thousands of remote sites. WAN or Internet connectivity and Wi-Fi module options include:

• Ethernet, T1/E1, ADSL2/2+, and VDSL
• 3G/4G LTE wireless
• 802.11ac Wave 2 Wi-Fi

Mist AI

WAN Assurance

Mist WAN Assurance is a cloud service that brings AI-powered automation and service levels to Juniper SRX Series Services Gateways, complementing the Juniper Secure SD-WAN solution. Mist WAN Assurance transforms IT operations from reactive troubleshooting to proactive remediation, turning insights into actions and delivering operational simplicity with seamless integration into existing deployments.

• SRX Series firewalls, deployed as secure SD-WAN edge devices, deliver the rich Junos streaming telemetry that provides the insights needed for WAN health metrics and anomaly detection. This data is leveraged within the Mist Cloud and AI engine, driving simpler operations, reducing mean time to repair (MTTR) and providing greater visibility into end-user experiences.
• Insights derived from SRX Series SD-WAN gateway telemetry data allows WAN Assurance to compute unique “User Minutes” that indicate whether users are having a good experience.
• The Marvis assistant for WAN allows you to ask direct questions like “Why is my Zoom call bad?” and provides complete insights, correlation, and actions.
• Marvis Actions identifies and summarizes issues such as application latency conditions, congested WAN circuits, or negotiation mismatches.

Simplifying Branch Deployments (Secure Connectivity/SD-WAN)

The SRX300 line delivers fully automated SD-WAN to both enterprises and service providers.

• A Zero-Touch Provisioning (ZTP) feature simplifies branch network connectivity for initial deployment and ongoing management.
• SRX300 firewalls offer best-in-class secure connectivity.
• The SRX300 firewalls efficiently utilize multiple links and load balance traffic across the enterprise WAN, blending traditional MPLS with other connectivity options such as broadband internet, leased lines, 4G/LTE, and more.
• Policy- and application-based forwarding capabilities enforce business rules created by the enterprise to steer application traffic towards a preferred path.

Comprehensive Security Suite

The SRX300 line offers a comprehensive suite of application security services, threat defenses, and intelligence services. The services consist of intrusion prevention system (IPS), application security user role-based firewall controls and cloud-based antivirus, anti-spam, and enhanced Web filtering, protecting networks from the latest content-borne threats. Integrated threat intelligence via Juniper Networks SecIntel offers adaptive threat protection against Command and Control (C&C)-related botnets and policy enforcement based on GeoIP. Customers can also leverage their own custom and third-party feeds for protection from advanced malware and other threats. Integrating the Juniper Networks Advanced Threat Protection solution, the SRX300 line detects and enforces automated protection against known malware and zero-day threats with a very high degree of accuracy.

Industry-Certified Junos Operating System

SRX300 Services Gateways run the Junos operating system, a proven, carrier-hardened OS that powers the top 100 service provider networks in the world.

The rigorously tested, carrier-class, rich routing features such as IPv4/IPv6, OSPF, BGP, and multicast have been proven over 15 years of worldwide deployments.

The SRX300 line also enables agile SecOps through automation capabilities that support Zero Touch Deployment, Python scripts for orchestration, and event scripting for operational management.

Features & Benefits:

Technical Specifications:

Additional Specification Features:

¹ SRX320 with PoE+ ports available as a separate SKU: SRX320-POE.
² 3SRX345 with dual AC PSU model.
³ 4SRX320 non PoE model.
⁴ 5SRX320-POE with 6 ports PoE+ model.
⁵ 6SRX345 with DC power supply (operating temperature as per GR-63 Issue 4 2012 test criteria).
⁶ 7As per GR63 Issue 4 (2012) test criteria.
⁷ Throughput numbers based on UDP packets and RFC2544 test methodology.
⁸ 9Throughput numbers based on HTTP traffic with 44 KB transaction size.
⁹ 10Route scaling numbers are with enhanced route-scale features turned on.
¹⁰ Offered as advanced security services subscription licenses.

Views:

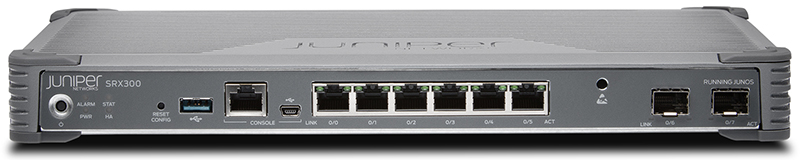

Top Front View

Front View

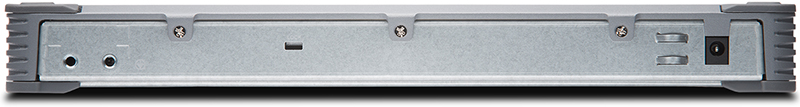

Rear View

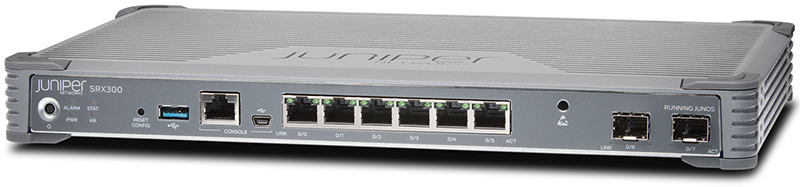

Left Angle View

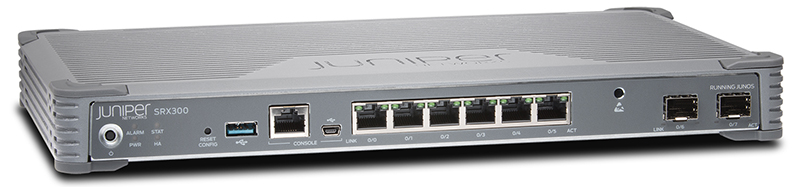

Right Angle View

Documentation:

Download the Juniper Networks SRX300 Line of Services Gateways Datasheet (PDF).
