Juniper Networks ACX7509
Cloud Metro Router

Overview:

Network operators are finding incredible opportunities with 5G, IoT, and cloud, along with daunting challenges to support increasingly complex services and applications. The ACX7509 provides eight usable slots of high-density, low-speed fan-out, 1GbE to 400GbE port flexibility and scale in a reliable and compact 5 U, 60 cm deep footprint. Operational simplicity and an innovative fabric-less, centralized chassis architecture use fewer components, no fabric cards, and silicon-free line cards. This produces standout power efficiency, extended MTBF, and exceptional value for service provider, enterprise, wholesale, data center, residential, IoT, and 4G/5G use cases.

The Juniper Networks ACX7500 line multiservice routers is designed to help operators achieve their capital, operational, and differentiated user experience goals. Part of the Juniper Networks ACX7000 Family of routers, the ACX7509 delivers exceptional TCO, investment protection, and support for Juniper® Cloud Metro and 5G solutions, IoT, and cloud applications, making it ideal for service provider, large enterprise, data center, and residential deployments that require extremely power-efficient, high-density, and high availability (HA) platforms.

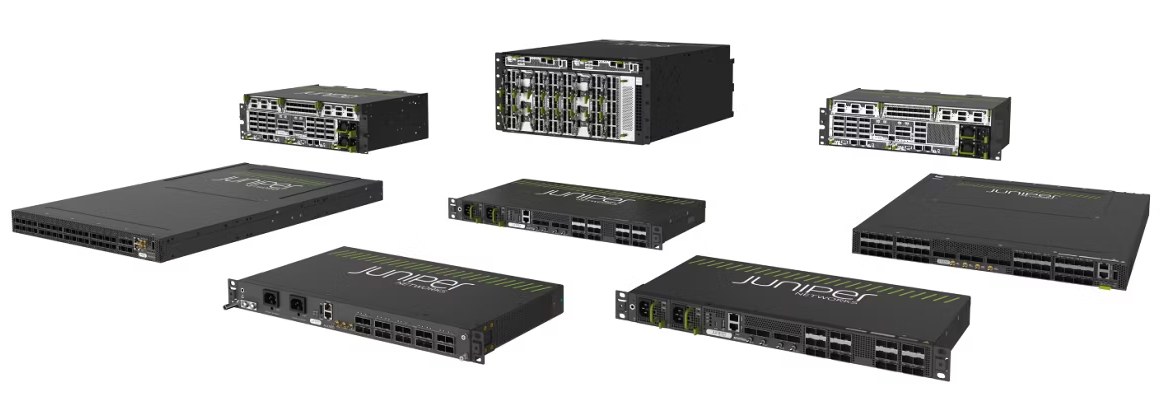

ACX7000 Family Overview

ACX7000 family of routers is purpose-built for the IP service fabric underlay of a Juniper Cloud Metro. They leverage the industry’s fastest chipset, provide a unique balance of system design, and set new benchmarks for sustainable, high-performance platforms. Managed by Junos® OS Evolved and Juniper Paragon™ Automation Portfolio, the ACX7000 routers are embedded with Paragon Active Assurance and with Zero Trust security built in, enabling operators to deliver highly differentiated customer experiences. Available in environmentally industrial-rated, fixed, fixed plus modular, and fully modular designs, these energy and footprint efficient multiservice routers support high-precision timing technologies and are engineered for service provider, enterprise, residential (including PON with the Juniper Unified PON Solution), IoT, and 4G/5G mobile applications.

Individually, ACX7000 platforms bring leading-edge performance, scale, and capability to any deployment. When building a comprehensive Juniper Cloud Metro architecture consisting of multiple ACX7000 family platforms, new dimensions of end-to-end operational capability, performance, and simplicity are realized. Forming the foundation of an IP service fabric underlay, the ACX7000 family of routers shares innovative features that elevate operations and enable the core characteristics of a Cloud Metro.

Product Offering

The ACX7509, from the ACX7500 line, is an 8-slot, 4.8 Tbps, modular, high-density multiservice router engineered to offer best-in-class performance, footprint, power efficiency, and scale. The innovative design approach includes centralized architecture for operational simplification and bandwidth flexibility, opening new possibilities for network transformation. The ASIC-free interface modules provide 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, 100GbE, 200GbE, and 400GbE build-as-you grow port speed flexibility—ideal for high fan-out aggregation services and legacy network support use cases.

Its breakthrough compact design with fabric-less architecture and fewer components, ICs, and ASICs sets new benchmarks for extremely low power consumption and TCO savings. Efficient cooling advances enable unrestricted use of high-power dense ZR/ZR+ transceivers on all supported ports in this fully redundant and high availability (HA) platform. Operators gain extended mean time between failures (MTBF) on an exceptionally small footprint consuming only 5 U and 60 cm deep of rack space, and a comparably simpler and less costly migration path to next-generation ASICs. ACX7905 platforms can realize a path to higher density, higher scale, higher port speeds, multiples of throughput, and future capabilities without a forklift or needing to change line cards, power supplies, and fans—as is necessary in competitive distributed chassis architectures. These improvements facilitate operational efficiency, investment protection, and radical capital and operational savings. ACX7509 capabilities also include Media Access Control Security (MACsec) on all ports, and the ability to seamlessly integrate with emerging distributed edge compute architectures.

ACX7509 supports three types of field replaceable FPCs for packet forwarding. These are installed vertically in the front slots of chassis and function as port extenders.

• ACX7509-FPC20Y, a 500 Gbps throughput FPC that provides 20 ports of 1GbE, 10GbE, 25GbE, and 50GbE
• ACX7509-FPC-16C, a 1.6 Tbps throughput FPC that provides 16 ports of 40GbE and 100GbE
• ACX7509-FPC-4CD, a 1.6 Tbps throughput FPC that provides 4 ports of 200GbE and 400GbE

Each FPC supports a variety of Ethernet port rates with different optics types. The ASIC-free port extenders deliver standout power efficiency and high value with port variety to meet growing network demands.

Designed for service providers, wholesale, large enterprise, and data center use cases, the ACX7509 is also a foundational building block of an IP services fabric in a Juniper® Cloud Metro solution.

Features and Benefits:

The ACX7509 is engineered for sustainability that changes the challenges of evolving service requirements and relentless traffic growth imposed by the 5G, IoT, and cloud era into opportunities for providers to thrive.

Feature	Benefits
Junos OS Evolved and Embedded Active Assurance	Managed by Junos OS Evolved, Juniper Paragon Active Assurance Test Agents are embedded into all ACX7000 platforms enabling automated monitoring, diagnosis, remediation, and optimization of service delivery, service performance, and differentiated user experience.
Rugged and Efficient Design	Multiservice, high-density, HA, 8-slot access and aggregation router delivers uninterrupted services and operational efficiencies through power supply, fan, and Routing Engine (RE) and Packet Forwarding Engine (PFE) redundancy. The innovative centralized design with fewer components allows less power draw and unrestricted high-power dense ZR/ZR+ transceiver use across all supporting ports.
Build-As-You-Grow Operational Simplicity	Cloud-inspired 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, 100GbE, 200GbE, and 400GbE build-as-you-grow ports scale to accommodate service growth and delivery. The dense fan-out ports offer a mix of low-speed and high-speed ports for high-end aggregation services and legacy network support.
Next-Gen Capabilities	Leading protocols are supported, including segment routing, SRv6, MPLS, Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN), advanced programmability, telemetry, leading network slicing and support for any overlay, underlay, or service.
Zero-Trust Security	Enhanced security capabilities include secure boot, integrated tamper-proof design, and trust anchor with DevID, enabling device attestation and enhanced security through a unique cryptographic digital identity.
Cloud Metro-Ready	Deep buffering for end-to-end service delivery assurance and precision-timing capabilities include Synchronous Ethernet, Precision Time Protocol (PTP), and advanced Class C timing for latency-optimized 5G service experiences. An ideal choice for service provider, enterprise, and residential use cases, including support for Juniper Unified PON, IoT, and 4G/5G mobile applications.

Maximum Port Count per Speed

FPC Model	1GbE	10GbE	25GbE	40GbE	50GbE	100GbE	200GbE	400GbE
ACX7509-FPC-20Y	120	160	160		100
ACX7509-FPC-16C		188*	256*	127		79
ACX7509-FPC-4CD					64*	32*	8	8

* With breakout: FPC Slot 7, one port cannot be used for 40GbE/100GbE due to PTP functionality.

FPC Optical Module Technology Support

FPC Model	SFP	SFP+	SFP28	QSFP+	SFP56	QSFP56-DD	QSFP28	QSFP28-DD	QSFP56
ACX7509-FPC-20Y	Yes	Yes	Yes		Yes
ACX7509-FPC-16C				Yes			Yes
ACX7509-FPC-4CD						Yes	Yes	Yes	Yes

Note: All ports on ACX7509 platforms support breakout options.

ACX7509 Platform Feature Matrix

Feature	ACX7509
System
Throughput	4.8 Tbps
Forwarding capacity	2 billion packets per second

Specifications:

ACX7509 Specifications
Hardware
Dimensions (W x H x D)	Metal-to-metal: 19.0 x 10.5 x 23.6 in. (48.2 x 26.7 x 60.0 cm)   Including cabling: 19.0 x 10.5 x 31.5 in. (48.2 x 26.7 x 80.0 cm)
Weight (lb/kg) fully configured	150 lb (68 kg)
Operating system	Junos OS Evolved
CPU	Intel Hewitt Lake, 64 GB DDRAM
Power (DC)	-48 VDC through -60 VDC
Power (AC)	240 VAC
Mounting	Rack and cabinet mounting options
Interfaces	The following line cards support MACsec on all ports:    20 x 1GbE/10GbE/25GbE/50GbE   4 x 200GbE/400GbE    16 x 40GbE/100GbE
Synchronization interfaces	1x RJ45 Management  1x RJ-45 Console + time of day (TOD)  1PPS and 10 MHz input and output      1x RJ45 BITs interface
Cooling	Two hot-swappable fan trays with four counter rotating fans in each fan tray; N+1 fan rotor redundancy at chassis level  Front to back air cooling
PSU redundancy	Premium bundle—4 power supply units (2+2)  Base bundle—2 power supply units (1+1)
Recommended software version	Junos OS Evolved 21.4R1 or later
Environmental Ranges
Operating temperature	32° to 104°F (0-40° C), short term 32° to 131° F (0-55° C) GR-63 NEBS-LE
Storage temperature	-40° through 158° F (-40° to 70° C)
Operating altitude	Up to 6000 feet (1828.8 meters)
Relative humidity operating	5% to 90% (noncondensing)
Typical and Maximum Thermal Output
Redundant System: Typical power (without optics)1	1605 W Heat Dissipation: 5476.48 BTU/hour
Redundant System: Maximum power (without optics)2	2180 W Heat Dissipation: 7438.46 BTU/hour
Non-Redundant System: Typical power (without optics)1	1193 W Heat Dissipation: 4070.51 BTU/hour
Non-Redundant System: Maximum power (without optics)2	1626 W Heat Dissipation: 5548.13 BTU/hour

¹Typical power consumption measured at 25° C ambient with 50% load on all ports (Internet Mix traffic)
²Maximum power consumption measured at 40° C ambient with 100% load on all ports (Internet Mix traffic)

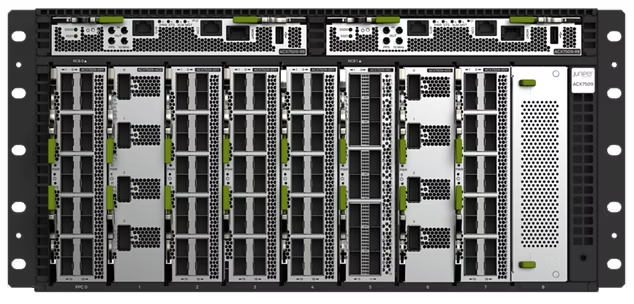

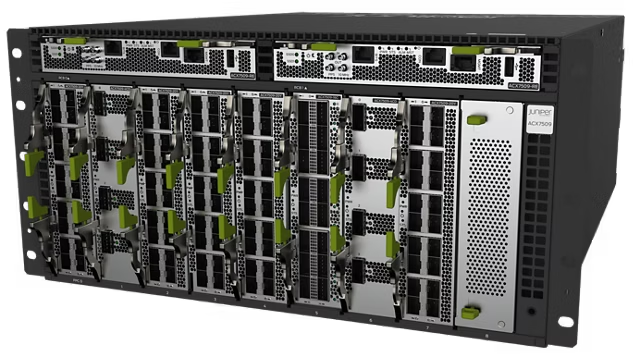

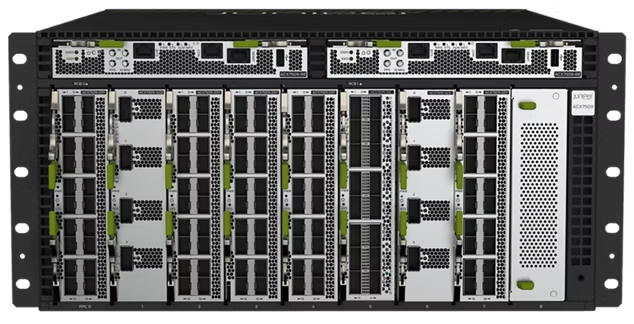

Views:
