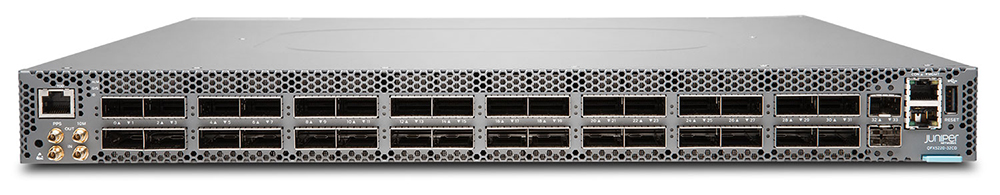

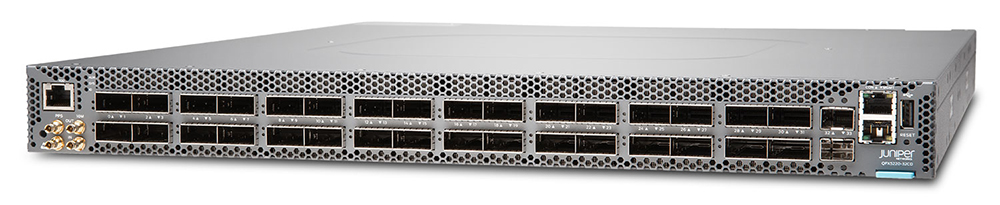

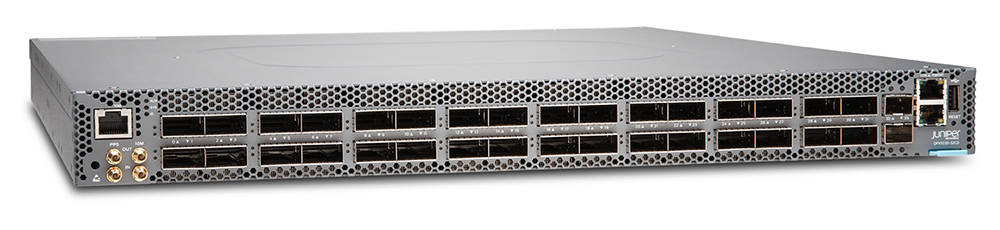

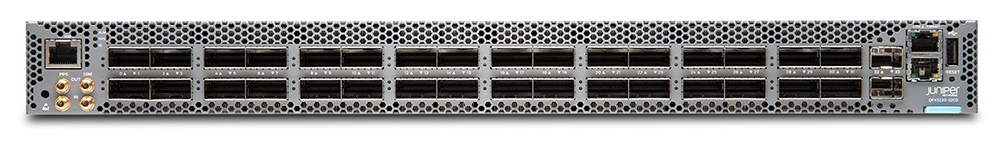

Juniper Networks QFX5220-32CD
32 x 40/100/4000GbE QSFP56-DD and 2 x 10GbE SFP+ Switch

Juniper Networks QFX5220-32CD

Juniper Products

QFX Series Ethernet Switch with AC Power Supplies

QFX5220, 32 QSFP-DD/QSFP+/QSFP28 ports, redundant fans, 2 AC power supplies, back-to-front airflow
(Hardware with base software)

#QFX5220-32CD-AFI
List Price: ~~$74,592.00~~
Our Price: ~~$60,046.56~~
Call For Lowest Price!

QFX5220, 32 QSFP-DD/QSFP+/QSFP28 ports, redundant fans, 2 AC power supplies, front-to-back airflow
(Hardware with base software)

#QFX5220-32CD-AFO
List Price: ~~$74,592.00~~
Our Price: ~~$60,046.56~~
Call For Lowest Price!

Click here to jump to more pricing!

Overview

Architecture & Component

Overview:

Cloud providers and network operators are increasingly deploying scale-out, spine-and-leaf IP fabric architectures built on fixed-configuration switches to support growing east-west traffic in the data center.

The QFX5220 Switch is optimally suited for these high-speed, high-density, spine-and-leaf IP fabrics. Supporting 400GbE, 200GbE*, 100GbE, 50GbE*, 40GbE, 25GbE, and 10GbE connections and offering an advanced L2, L3, and MPLS feature set, the QFX5220 enables cloud service providers and network operators to build large, next-generation IP fabrics that support network virtualization and intelligent traffic forwarding based on proven, Internet-scale technology.

Product Description

The Juniper Networks QFX5220 Switch is a next-generation, fixed-configuration spine-and-leaf switch. It offers flexible, cost-effective, high-density 400GbE, 200GbE*, 100GbE, 50GbE*, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity, and delivers a versatile, future-proofed solution for today’s data centers.

QFX5220 switches support advanced Layer 2, Layer 3, and MPLS features. For large public cloud providers—early adopters of high-performance servers to meet explosive workload growth—the QFX5220 supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. For enterprise customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5220 switch also provides a high radix-native 100GbE lean-spine option at reduced power and a smaller footprint.

Two QFX5220 models are available, supporting different configurations and use cases. Delivering 25.6 Tbps of bandwidth, both models are optimally designed for spine-and-leaf deployments in enterprise, HPC, service provider, and cloud data centers.

QFX5220-32CD: The QFX5220-32CD offers 32 ports in a low-profile 1 U form factor. High-speed ports support a wide variety of port configurations, including 400GbE, 200GbE, 100GbE, 25GbE, 40GbE, and 10GbE. The QFX5220-32CD is equipped with two AC or DC power supplies, providing 1+1 redundancy when all power supplies are present, and six hot-swappable fans offering ports-to-FRUs (AFO) or FRUs-to-ports (AFI) airflow options, providing (5x2+1)+1 redundancy.

QFX5220-128C: The QFX5220-128C offers 128 ports in a 4 U form factor. The high-speed ports support a wide variety of configurations, including 100GbE and 40GbE. The switch is equipped with four AC or DC power supplies, providing 2+2 redundancy when all power supplies are present, and six hot-swappable ports-to-FRUs (AFO) airflow fans, providing (5x2+1) +1 redundancy.

Both QFX5220 switch models include an Intel XeonD-1500 processor to drive the control plane, which runs the Juniper Networks Junos® OS Evolved operating system software.

Product Highlights

The QFX5220 includes the following capabilities. Please refer to the Specifications section for currently shipping features.

Native 400GbE Configuration
The QFX5220-32CD offers 32 ports in a 1 U form factor. The high-speed ports support a wide variety of configurations, including 100GbE and 400GbE.

High-Density Configurations
The QFX5220 switches are optimized for high-density fabric deployments. The QFX5220-32CD provides an option of either 32 ports of 400GbE, 100GbE, or 40GbE, while the QFX5220-128C provides an option of either 128 QSFP28 100GbE ports or 64 40GbE QSFP ports.

Flexible Connectivity Options
The QFX5220 offers a choice of interface speeds for server and intra-fabric connectivity, providing deployment versatility and investment protection.

Rich automation capabilities: The QFX5220 switches support a number of network automation features for plug-and-play operations, including zero-touch provisioning (ZTP), operations and event scripts, automatic rollback, and Python scripting.
Advanced Junos Evolved features: The QFX5220 switch supports features such as BGP add-path, MPLS, L3 VPN, RoCEv2, and Multicast capabilities.
Junos Evolved software architecture: The QFX5220 supports a modular Junos Evolved software architecture that allows the switch’s control and data plane processes and functions to run in parallel, maximizing utilization of the high-performance quad-core CPU, support for seamless component upgrade without bringing the switch down, and support for containerization, enabling application deployment using LXC or Docker.

Deployment Options

The QFX5220-32CD can be deployed as a universal device in cloud data centers to support 100GbE server access and 400GbE spine-and-leaf configurations, optimizing data center operations by using a single device across multiple layers of the network (see Figure 1).

The QFX5220-128C is a high-radix 100GbE lean-spine switch optimized to aggregate 10GbE and 25GbE top-of-rack switches in these environments. Many cloud, service provider, data center, and enterprise networks are deploying 100GbE to handle growing demand. Figure 2 and Figure 3 show multiple use cases with the QFX5220-128C as a lean spine.

Figure 1: Typical cloud data center deployment for the QFX5220-32CD

Figure 2: 100GbE fabric in a typical cloud data center

Figure 3: Private cloud data center with the QFX5220-128C as lean spine

*Reserved for future release

Architecture and Key Components:

The QFX5220 can be used in L3 fabrics and L2 networks. You can choose the architecture that best suits your deployment needs and easily adapt and evolve as requirements change over time. The QFX5220 serves as the universal building block for these two switching architectures, enabling data center operators to build cloud networks in their own way.

Layer 3 fabric: For customers looking to build scale-out data centers, a Layer 3 spine-and-leaf Clos fabric provides predictable, nonblocking performance and scale characteristics. A two-tier fabric built with QFX5220 switches as leaf devices and Juniper Networks QFX10000 line of Switches as the spine can scale to support up to 128 40GbE ports or 128 25GbE and/or 10GbE server ports in a single fabric. One of the most complicated tasks when building an IP fabric is assigning all the implementation details, including IP addresses, BGP autonomous system numbers, routing policies, loopback address assignments, and others. Automating the creation of an IP fabric at a large scale is equally difficult. To address these challenges, Juniper has created the OpenClos project to provide free, open-source tools that automate the creation of IP fabrics in the data center. A set of Python scripts developed as an open source project on GitHub, OpenClos takes a set of inputs that describe the shape and size of a data center and produces switch configuration files and a cabling plan

Junos Evolved ensures a high feature and bug fix velocity and provides first-class access to system state, allowing customers to run DevOps tools, containerized applications, management agents, specialized telemetry agents, and more.

Cloud/Carrier-Class Junos OS Evolved Network Operating System

Features and Benefits:

Automation and programmability: The QFX5220 supports numerous network automation features, including operations and event scripts and ZTP.
Cloud-level scale and performance: The QFX5220 supports best-in-class cloud-scale L2/L3 deployments with a low latency of 750 ns and a superior scale and performance. This includes L2 support for 8192 media access control (MAC) addresses and Address Resolution Protocol (ARP) learning, which scales up to 32,000 entries at 500 frames per second. It also includes L3 support for 336,000 longest prefix match (LPM) routes and 380,000 host routes on IPv4. Additionally, the QFX5220 supports 130,000 LPM routes and 130,000 host routes on IPv6, 128-way equal-cost multipath (ECMP) routes, and a filter that supports 768 (ingress) and 512 (egress) exact match filtering rules. The QFX5220 supports up to 128 link aggregation groups, 4096 VLANs, and Jumbo frames of 9216 bytes. Junos Evolved provides configurable options through a CLI, enabling each QFX5220 to be optimized for different deployment scenarios.
MPLS: The QFX5220 supports a broad set of MPLS features, including L3 VPN, RSVP traffic engineering, and LDP to support standards-based multitenancy and network virtualization with per-flow service-level agreements (SLAs) at scale. The QFX5220 can also be deployed as a low-latency MPLS label-switching router (LSR) or MPLS provider edge (PE) router in smaller scale environments. The QFX5220, along with Juniper Networks QFX5100 and QFX5200 switches, are the most compact, low-latency, high-density, low-power family of switches to offer an MPLS feature set in the industry.
IEEE 1588 PTP Boundary Clock with Hardware Timestamping*: IEEE 1588 PTP Transparent/Boundary Clock is supported on QFX5220, enabling accurate and precise sub-microsecond timing information in today’s data center networks. In addition, the QFX5220 supports hardware timestamping; timestamps in Precision Time Protocol (PTP) packets are captured and inserted by an onboard field-programmable gate array (FPGA) on the switch at the physical (PHY) level.
Data packet timestamping*: When the optional data packet timestamping feature is enabled, selected packets flowing through QFX5220 switches are timestamped with references to the recovered PTP clock. When these packets are received by nodes in the network, the packet timestamping information can be mirrored onto monitoring tools for detailed analysis, helping identify bottlenecks in the network that cause latency. This information also helps with network performance analysis and record keeping for legal and compliance purposes, which is required by certain business transactions such as financial trading, video streaming, and research establishments.
RoCEv2: As a switch capable of transporting data as well as storage traffic over Ethernet, the QFX5220 provides an IEEE data center bridging (DCB) converged network between servers with disaggregated flash storage arrays or an NVMe-enabled storage area network (SAN). The QFX5220 offers a full-featured DCB implementation that provides strong monitoring capabilities on the top-of-rack switch for SAN and LAN administration teams to maintain clear separation of management. The RDMA over Converged Ethernet version 2 (RoCEv2) transit switch functionality, including priority-based flow control (PFC) and Data Center Bridging Capability Exchange (DCBX), are included as part of the default software.
Junos OS Evolved: Junos Evolved is a native Linux operating system that incorporates a modular design of independent functional components and enables individual components to be upgraded independently while the system remains operational. Component failures are localized to the specific component involved and can be corrected by upgrading and restarting that specific component without having to bring down the entire device.
Retained state: State is the retained information or status pertaining to physical and logical entities. It includes both operational and configuration state, comprising committed configuration, interface state, routes, hardware state, and what is held in a central database called the distributed data store (DDS). State information remains persistent, is shared across the system, and is supplied during restarts.
Feature support: All key networking functions such as routing, bridging, management software, and management plane interfaces, as well as APIs such as CLI, NETCONF, Juniper Extension Toolkit (JET), Junos Telemetry Interface (JTI), and the underlying data models, resemble those supported by Junos. This ensures compatibility and eases the transition to Junos Evolved.

Junos Telemetry Interface

The QFX5220 supports Junos Telemetry Interface (JTI), a modern telemetry streaming tool that provides performance monitoring in complex, dynamic data centers. Streaming data to a performance management system lets network administrators measure trends in link and node utilization and troubleshoot issues such as network congestion in real time.

JTI provides:

Application visibility and performance management by provisioning sensors to collect and stream data and analyze the application and workload flow path through the network
Capacity planning and optimization by proactively detecting hotspots and monitoring latency and microbursts
Troubleshooting and root cause analysis via high-frequency monitoring and correlating overlay and underlay networks.

Specifications:

	Details
Form factor	QFX5220-32CD: Fixed 1 U spine/leaf QFX5220-128C: Fixed 4 U leaf/lean spine
Dimensions (W x H x D)	QFX5220-32CD: 17.26 x 1.72 x 21.1 in. (43.8 x 4.3 x 53.59 cm) QFX5220-128C: 17.26 x 6.88 x 29 in. (43.8 x 17.47 x 73.66 cm)
Switching capacity	QFX5220-32CD/128C: 12.8 Tbps / 8 Bpps
Port densities(10/25/40/50/100/400GbE)	QFX5220-32CD: 32 x 400GbE QFX5220-128C: 128 x 100GbE
Power consumption	QFX5220-32CD Max load: 973W Typical load:730W QFX5220-128C Max load: 2023W Typical load: 1433W
Buffer capacity	QFX5220-32CD: 128MB QFX5220-128C: 64MB
MAC addresses	QFX5220-32CD/128C: 8192
IPv4 unicast/multicast routes	QFX5220-32CD/128C: 336,000/380,000
IPv6 unicast/multicast routes	QFX5220-32CD/128C: 130,000
Number of VLANs	QFX5220-32CD: 3968 QFX5220-128C: 3952
ARP entries	QFX5220-32CD/128C: 32,000
Latency	750 ns
Overlay Management and Protocols	Contrail Networking, EVPN-VXLAN

Specification	QFX5220-32CD	QFX5220-128C
System throughput	Up to 25.6 Tbps (bidirectional)	Up to 25.6 Tbps (bidirectional)
Forwarding capacity	8 billion packets per second	8 billion packets per second
Port density	32 ports of QSFP56-DD 400GbE	128 ports of QSFP28 100GbE
SFP+/SFP28	2 SFP+ transceiver ports for in-band network management	2 SFP+ transceiver ports for in-band network management

Specification	QFX5220-32CD	QFX5220-128C
Dimensions (W x H x D)	17.26 x 1.72 x 21.1 in. (43.8 x 4.3 x 53.59 cm)	17.26 x 6.88 x 29 in. (43.8 x 17.47 x 73.66 cm)
Rack units	1 U	4 U
Weight	24.5 lb (11.11 kg) with power supplies and fans installed	98 lb (44.44 kg) with 4 power supplies and 6 fan trays installed
Operating system	Junos OS Evolved	Junos OS Evolved
CPU	Intel Xeon D-1518	Intel Xeon D-1518
Power	Redundant (1+1) hot-pluggable 1600 W AC/DC power supplies (2n) 115-240 V single phase AC power -48 to -60 V DC power	Redundant (1+1) hot-pluggable 1600 W AC/DC power supplies 115-240 V single phase AC power -48 to -60 V DC power

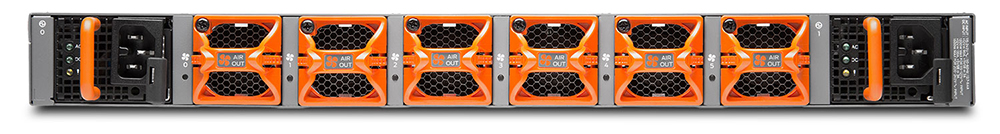

Cooling	Ports-to-FRUs (AFO) and FRUs-to-ports (AFI) cooling Redundant (5x2+1)+1 hot-pluggable fan modules with variable speed to minimize power draw	Ports-to-FRUs (AFO) cooling Redundant (5x2+1) + 1 hot-pluggable fan modules with variable speed to minimize power draw
Total packet buffer	64 MB	64 MB
Recommended Software Version	Junos OS Evolved 19.2R1 and Later	Junos OS Evolved 19.3R1 and Later
Warranty	Juniper standard one-year warranty	Juniper standard one-year warranty

Model:	QFX5220-32CD
System Capacity
System throughput	Up to 25.6 Tbps (bidirectional)
Forwarding capacity	8 billion packets per second
Port density	32 ports of QSFP56-DD 400GbE
SFP+/SFP28	2 SFP+ transceiver ports for in-band network management
System Specifications
Dimensions (H x W x D)	17.26 x 1.72 x 21.1 in. (43.8 x 4.3 x 53.59 cm)
Rack units	1 U
Weight	24.5 lb (11.11 kg) with power supplies and fans installed
Operating system	Junos OS Evolved
CPU	Intel Xeon D-1518
Power	Redundant (1+1) hot-pluggable 1600 W AC/DC power supplies (2n) 115-240 V single phase AC power -48 to -60 V DC power
Cooling	Ports-to-FRUs (AFO) and FRUs-to-ports (AFI) cooling Redundant (5x2+1)+1 hot-pluggable fan modules with variable speed to minimize power draw
Total packet buffer	64 MB
Recommended Software Version	Junos OS Evolved 19.2R1 and Later
Warranty	Juniper standard one-year warranty
Environmental Ranges
Operating temperature	32° to 104° F (0° to 40° C)
Storage temperature	-40° to 158° F (-40° to 70° C)
Operating altitude	Up to 6000 feet (1828.8 meters)
Relative humidity operating	5 to 90% (noncondensing
Relative humidity nonoperating	5 to 95% (noncondensing
Seismic	Designed to meet GR-63, Zone 4 earthquake requirements
Maximum Thermal Output
Maximum power draw	115-127 V: 973 W; 220-240 V: 958 W
Typical power draw	115-127 V: 730 W; 220-240 V: 775 W

Additional Feature Specifications:

Performance Scale (Unidimensional)

MAC addresses per system: 8192
VLAN IDs: 3968 (QFX5220-32CD) 3952 (QFX5220-128C)
Number of link aggregation groups (LAGs): 128
Number of ports per LAG: 64
Firewall filters:
- Ingress: 768 Routed ACL (RACL), VLAN ACL (VACL), and Port ACL (PACL) rules
- Egress: 2558 RACL; 512 VACL and PACL rules
IPv4 unicast routes: 380,000 prefixes; 380,000 host routes
IPv6 unicast routes: 130,000 prefixes; 130,000 host routes
Address Resolution Protocol (ARP) entries: 32,000
Generic routing encapsulation (GRE) tunnels: 2000
MPLS labels: 16,000
Jumbo frame: 9216 bytes
Traffic mirroring
- Mirroring destination ports per switch: 4
- Maximum number of mirroring sessions: 4
- Mirroring destination VLANs per switch: 4

Layer 2 Features

STP—IEEE 802.1D (802.1D-2004)*
Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s)*
Bridge protocol data unit (BPDU) protect*
Loop protect*
Root protect*
RSTP and VSTP running concurrently*
VLAN—IEEE 802.1Q VLAN trunking
Routed VLAN interface (RVI)
Port-based VLAN
MAC address filtering*
Static MAC address assignment for interface
MAC learning disable
Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Link Aggregation

LAG load sharing algorithm—bridged or routed (unicast or multicast) traffic:
- IP: Session Initiation Protocol (SIP), Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port
- L2 and non-IP: MAC SA, MAC DA, Ether type, VLAN ID, source port

Layer 3 Features

Static routing
OSPF v1/v2
OSPF v3
Filter-based forwarding
Virtual Router Redundancy Protocol (VRRP)*
IPv6
Virtual routers
Loop-free alternate (LFA)
BGP (Advanced Services or Premium Services license)
IS-IS (Advanced Services or Premium Services license)
Dynamic Host Configuration Protocol (DHCP) v4/v6 relay
VR-aware DHCP
IPv4/IPv6 over GRE tunnels (interface-based with decap/encap only)

Multicast Features

Internet Group Management Protocol (IGMP) v1/v2
Multicast Listener Discovery (MLD) v1/v2
IGMP proxy, querier
IGMP v1/v2/v3 snooping
Intersubnet multicast using IRB interface
MLD snooping
Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM, PIM-Bidir*
Multicast Source Discovery Protocol (MSDP)*

Security and Filters

Secure interface login and password
RADIUS
TACACS+
Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters, loopback filters for control plane protection
Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark
SSH v1, v2
Static ARP support
Storm control, port error disable, and autorecovery*
Control plane denial-of-service (DoS) protection

Quality of Service (QoS)

L2 and L3 QoS: Classification, rewrite, queuing
Rate limiting:
- Ingress policing: 1 rate 2 color, 2 rate 3 color
- Egress policing: Policer, policer mark down action
- gress shaping: Per queue, per port
10 hardware queues per port (8 unicast and 2 multicast)
Strict priority queuing (LLQ), shaped-deficit weighted round-robin (SDWRR), weighted random early detection (WRED)
802.1p remarking
Layer 2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN
Congestion avoidance capabilities: WRED, ECN
Trust IEEE 802.1p (ingress)
Remarking of bridged packets
Configurable shared buffer and buffer monitoring

MPLS (Premium Services License)

Static label-switched paths (LSPs)
RSVP-based signaling of LSPs
LDP-based signaling of LSPs
LDP tunneling (LDP over RSVP)
MPLS class of service (CoS)*
MPLS access control list (ACL)/policers*
MPLS LSR support
IPv4 L3 VPN (RFC 2547, 4364)
MPLS fast reroute (FRR)

Data Center Bridging (DCB)

Priority-based flow control (PFC)—IEEE 802.1Qbb
Data Center Bridging Exchange Protocol (DCBX)*

High Availability

Bidirectional Forwarding Detection (BFD)
Uplink failure detection (UFD)*

Visibility and Analytics

Switched Port Analyzer (SPAN)
Remote SPAN (RSPAN)
Encapsulated Remote SPAN (ERSPAN)
sFlow v5
Junos Telemetry Interface

Management and Operations

Contrail Networking*
Role-based CLI management and access
CLI via console, telnet, or SSH
Extended ping and traceroute
Junos OS Evolved configuration rescue and rollback
Image rollback
SNMP v1/v2/v3
Junos OS Evolved XML management protocol
High frequency statistics collection
Automation and orchestration
Zero-touch provisioning (ZTP)
Python
Junos OS Evolved event, commit, and OP scripts

Standards Compliance

IEEE Standards

IEEE 802.1D
IEEE 802.1w
IEEE 802.1
IEEE 802.1Q
IEEE 802.1p
IEEE 802.1ad
IEEE 802.3ad
IEEE 802.1AB
IEEE 802.3x
IEEE 802.1Qbb*
IEEE 802.1Qaz

T11 Standards

INCITS T11 FC-BB-5

Supported RFCs

RFC 768 UDP
RFC 783 Trivial File Transfer Protocol (TFTP)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 Telnet client and server
RFC 894 IP over Ethernet
RFC 903 RARP
RFC 906 TFTP Bootstrap
RFC 951 1542 BootP
RFC 1058 Routing Information Protocol
RFC 1112 IGMP v1
RFC 1122 Host requirements
RFC 1142 OSI IS-IS Intra-domain Routing Protocol
RFC 1256 IPv4 ICMP Router Discovery (IRDP)
RFC 1492 TACACS+
RFC 1519 Classless Interdomain Routing (CIDR)
RFC 1587 OSPF not-so-stubby area (NSSA) Option
RFC 1591 Domain Name System (DNS)
RFC 1745 BGP4/IDRP for IP—OSPF Interaction
RFC 1772 Application of the Border Gateway Protocol in the Internet
RFC 1812 Requirements for IP Version 4 routers
RFC 1997 BGP Communities Attribute
RFC 2030 SNTP, Simple Network Time Protocol
RFC 2068 HTTP server
RFC 2131 BOOTP/DHCP relay agent and Dynamic Host
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Accounting
RFC 2154 OSPF w/Digital Signatures (password, MD-5)
RFC 2236 IGMP v2
RFC 2267 Network ingress filtering
RFC 2328 OSPF v2 (edge mode)
RFC 2338 VRRP
RFC 2362 PIM-SM (edge mode)
RFC 2370 OSPF Opaque link-state advertisement (LSA) Option
RFC 2385 Protection of BGP Sessions via the TCP Message Digest 5 (MD5) Signature Option
RFC 2439 BGP Route Flap Damping
RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers
RFC 2597 Assured Forwarding PHB (per-hop behavior) Group
RFC 2598 An Expedited Forwarding PHB
RFC 2697 A Single Rate Three Color Marker
RFC 2698 A Two Rate Three Color Marker
RFC 2796 BGP Route Reflection—An Alternative to Full Mesh IBGP
RFC 2918 Route Refresh Capability for BGP-4
RFC 3065 Autonomous System Confederations for BGP
RFC 3376 IGMP v3 (source-specific multicast include mode only)
RFC 3392 Capabilities Advertisement with BGP-4
RFC 3446, Anycast RP
RFC 3569 Source-specific multicast (SSM)
RFC 3618 MSDP
RFC 3623 Graceful OSPF Restart
RFC 4271 Border Gateway Protocol 4 (BGP-4)
RFC 4360 BGP Extended Communities Attribute
RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP)
RFC 4486 Subcodes for BGP Cease Notification Message
RFC 4724 Graceful Restart Mechanism for BGP
RFC 4812 OSPF Restart Signaling
RFC 4893 BGP Support for Four-octet AS Number Space
RFC 5176 Dynamic Authorization Extensions to RADIUS
RFC 5396 Textual Representation of Autonomous System (AS) Numbers
RFC 5668 4-Octet AS Specific BGP Extended Community
RFC 5880 Bidirectional Forwarding Detection (BFD)
Configuration Protocol (DHCP) server

Supported MIBs

RFC 155 SMI
RFC 1157 SNMPv1
RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs
RFC 1850 OSPFv2 MIB
RFC 1901 Introduction to Community-based SNMPv2
RFC 2011 SNMPv2 for Internet protocol using SMIv2
RFC 2012 SNMPv2 for transmission control protocol using SMIv2
RFC 2013 SNMPv2 for user datagram protocol using SMIv2
RFC 2233, The Interfaces Group MIB using SMIv2
RFC 2287 System Application Packages MIB
RFC 2570 Introduction to Version 3 of the Internet standard Network Management Framework
RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access)
RFC 2572 Message Processing and Dispatching for the SNMP (read-only access)
RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3
RFC 2578 SNMP Structure of Management Information MIB
RFC 2579 SNMP Textual Conventions for SMIv2
RFC 2580 Conformance Statements for SMIv2
RFC 2665 Ethernet-like interface MIB
RFC 2787 VRRP MIB
RFC 2790 Host Resources MIB
RFC 2819 RMON MIB
RFC 2863 Interface Group MIB
RFC 2932 IPv4 Multicast MIB
RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework
RFC 3411 An architecture for describing SNMP Management Frameworks
RFC 3412 Message Processing and Dispatching for the SNMP
RFC 3413 Simple Network Management Protocol
RFC 3414 User-based Security Model (USM) for SNMPv3
RFC 3415 View-based Access Control Model (VACM) for the SNMP
RFC 3416 Version 2 of the Protocol Operations for the SNMP
RFC 3417 Transport Mappings for the SNMP
RFC 3418 Management Information Base (MIB) for the SNMP
RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet Standard Network Management Framework
RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model
RFC 4188 Definitions of Managed Objects for Bridges
RFC 4318 Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol
RFC 4363b Q-Bridge VLAN MIB

Safety and Compliance

Safety

CAN/CSA-C22.2 No. 60950-1 Information Technology Equipment—Safety
UL 60950-1 Information Technology Equipment—Safety
EN 60950-1 Information Technology Equipment—Safety
IEC 60950-1 Information Technology Equipment—Safety (All country deviations)
EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification

Security

FIPS/CC*
TAA*

Electromagnetic Compatibility

47 CFR Part 15, (FCC) Class A
ICES-003 Class A
EN 55022/EN 55032, Class A
CISPR 22/CISPR 32, Class A
EN 55024
CISPR 24
EN 300 386
VCCI Class A
AS/NZS CISPR 32, Class A
KN32/KN35
BSMI CNS 13438, Class A
EN 61000-3-2
EN 61000-3-3
ETSI
ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment
ETSI EN 300 019-2-1 (2000)—Storage
ETSI EN 300 019-2-2 (1999)—Transportation
ETSI EN 300 019-2-3 (2003)—Stationary Use at Weatherprotected Locations
ETSI EN 300 019-2-4 (2003)—Stationary Use at NonWeather-protected Locations
ETS 300753 (1997)—Acoustic noise emitted by telecommunications equipment

Environmental Compliance

Restriction of Hazardous Substances (ROHS) 6/6
Silver PSU Efficiency
Recycled material
Waste Electronics and Electrical Equipment (WEEE)
Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
China Restriction of Hazardous Substances (ROHS)

Telco

Common Language Equipment Identifier (CLEI) code

Views:

Top Front View

Front View

Rear View

Left View

Right View

Documentation:

Download the Juniper Networks QFX5220 Ethernet Switch Data Sheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.

Juniper Products

QFX Series Ethernet Switch with AC Power Supplies

QFX5220, 32 QSFP-DD/QSFP+/QSFP28 ports, redundant fans, 2 AC power supplies, back-to-front airflow
(Hardware with base software)

#QFX5220-32CD-AFI
List Price: ~~$74,592.00~~
Our Price: ~~$60,046.56~~
Call For Lowest Price!

QFX5220, 32 QSFP-DD/QSFP+/QSFP28 ports, redundant fans, 2 AC power supplies, front-to-back airflow
(Hardware with base software)

#QFX5220-32CD-AFO
List Price: ~~$74,592.00~~
Our Price: ~~$60,046.56~~
Call For Lowest Price!

QFX Series Ethernet Switch with DC Power Supplies

QFX5220, 32 QSFP-DD/QSFP+/QSFP28 ports, redundant fans, 2 DC power supplies, back-to-front airflow
(Hardware with base software)

#QFX5220-32CD-D-AFI
List Price: ~~$77,700.00~~
Our Price: ~~$62,548.50~~
Call For Lowest Price!

QFX5220, 32 QSFP-DD/QSFP+/QSFP28 ports, redundant fans, 2 DC power supplies, front-to-back airflow
(Hardware with base software)

#QFX5220-32CD-D-AFO
List Price: ~~$77,700.00~~
Our Price: ~~$62,548.50~~
Call For Lowest Price!

Juniper Care

Juniper Care Core Support for QFX5220-32CD

#SVC-COR-QFX5-32CD
List Price: ~~$2,381.00~~
Our Price: $2,023.85

Juniper Care Core Plus Support for QFX5220-32CD

#SVC-CP-QFX5-32CD
List Price: ~~$2,679.00~~
Our Price: $2,277.15

Juniper Care Next Day Support for QFX5220-32CD

#SVC-ND-QFX5-32CD
List Price: ~~$2,976.00~~
Our Price: $2,529.60

Juniper Care Next Day Onsite Support for QFX5220-32CD

#SVC-NDCE-QFX5-32CD
List Price: ~~$3,721.00~~
Our Price: $3,162.85

Juniper Care Same Day Support for QFX5220-32CD

#SVC-SD-QFX5-32CD
List Price: ~~$4,762.00~~
Our Price: $4,047.70

Juniper Care Same Day Onsite Support for QFX5220-32CD

#SVC-SDCE-QFX5-32CD
List Price: ~~$5,953.00~~
Our Price: $5,060.05

Advanced Feature Licenses

Perpetual Advanced 1 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-A1-P
List Price: ~~$18,637.00~~
Our Price: ~~$15,002.79~~
Call For Lowest Price!

Perpetual Advanced 2 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-A2-P
List Price: ~~$28,756.00~~
Our Price: ~~$23,148.58~~
Call For Lowest Price!

Perpetual Premium 1 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-P1-P
List Price: ~~$45,780.00~~
Our Price: ~~$36,852.90~~
Call For Lowest Price!

3 Year Advanced 1 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-A1-3
List Price: ~~$14,933.00~~
Our Price: $12,021.07

3 Year Advanced 2 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-A2-3
List Price: ~~$22,997.00~~
Our Price: ~~$18,512.59~~
Call For Lowest Price!

3 Year Premium 1 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-P1-3
List Price: ~~$36,587.00~~
Our Price: ~~$29,452.54~~
Call For Lowest Price!

5 Year Advanced 1 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-A1-5
List Price: ~~$22,400.00~~
Our Price: ~~$18,032.00~~
Call For Lowest Price!

5 Year Advanced 2 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-A2-5
List Price: ~~$34,496.00~~
Our Price: ~~$27,769.28~~
Call For Lowest Price!

5 Year Premium 1 License for QFX5100 and QFX5200 Class 3 products

#S-QFX5K-C3-P1-5
List Price: ~~$54,880.00~~
Our Price: ~~$44,178.40~~
Call For Lowest Price!

Rack Mount Kit

4-Post Rack Mount Kit for QFX5220-32CD

#QFX5220-32CD-4PRMK
List Price: ~~$1,243.00~~
Our Price: $1,000.62

Spare

Airflow in (AFI) back-to-front airflow fans for QFX5130-32CD

#QFX5220-32CD-FANAI
List Price: ~~$622.00~~
Our Price: $500.71

Airflow out (AFO) front-to-back airflow fans for QFX5130-32CD

#QFX5220-32CD-FANAO
List Price: ~~$622.00~~
Our Price: $500.71

Power Supply Unit

QFX5130-32CD-AFI 1 U AC power supply unit

#JPSU-1600W-1UACAFI
List Price: ~~$3,481.00~~
Our Price: $2,802.21

QFX5130-32CD-AFO 1 U AC power supply unit

#JPSU-1600W-1UACAFO
List Price: ~~$3,481.00~~
Our Price: $2,802.21

QFX5130-32CD-D-AFI 1 U DC power supply unit

#JPSU-1600W-1UDCAFI
List Price: ~~$4,848.00~~
Our Price: $3,902.64

QFX5130-32CD-D-AFO 1 U DC power supply unit

#JPSU-1600W-1UDCAFO
List Price: ~~$4,848.00~~
Our Price: $3,902.64

Optics and Transceivers

QSFP56-DD 400GbE DAC 1 M

#QDD-400G-DAC-1M
List Price: ~~$1,043.00~~
Our Price: $839.62

QSFP56-DD 400GbE DAC 2.5 M

#QDD-400G-DAC-2P5M
List Price: ~~$1,311.00~~
Our Price: $1,055.36

QSFP-DD 4x100GBASE-FR breakout 1310 nm PAM4 transceiver module, 2 km reach

#QDD-4x100G-FR
List Price: ~~$8,787.00~~
Our Price: $7,073.54

QSFP-DD 400GBASE-DR4 / 4x100GBASE-DR 1310 nm PAM4 transceiver module, 500 m reach

#QDD-400G-DR4
List Price: ~~$7,546.00~~
Our Price: $6,074.53

QSFP-DD 400GBASE-FR4 1310 nm PAM4 transceiver module, 2 km reach

#QDD-400G-FR4
List Price: ~~$9,001.00~~
Our Price: $7,245.81

100GbE QSFP28 to 4x25GbE SFP28 passive direct attach copper breakout cable, length: 1 m

#JNP-100G-4x25G-1M
List Price: ~~$1,084.00~~
Our Price: $872.62

100GbE QSFP28 to 4x25G SFP28 passive direct attach copper breakout cable, length: 3 m

#JNP-100G-4x25G-3M
List Price: ~~$1,399.00~~
Our Price: $1,126.20

100GbE SR-bidirectional QSFP transceiver, LC, 100 M, OM4 multimode fiber-optic (MMF)

#JNP-QSFP-100G-BXSR
List Price: ~~$5,012.00~~
Our Price: $4,034.66

Juniper Networks QFX5220-32CD 32 x 40/100/4000GbE QSFP56-DD and 2 x 10GbE SFP+ Switch
