Juniper AP61 Access Point
Outdoor 802.11ac Wave 2 Wi-Fi and Bluetooth LE


Juniper Networks AP21
Juniper Products
Juniper Access Points
Juniper AP61 Access Point (Internal Antenna)
#AP61-US
List Price: $2,615.00
Our Price: $2,105.08
Juniper AP61 Access Point (External Antenna)
#AP61E-US
List Price: $2,615.00
Our Price: $2,105.08

Click here to jump to more pricing!

Overview:

The Juniper AP61 is an outdoor access point that support 802.11ac Wave 2 Wi-Fi, patented Bluetooth LE, and Internet of Things (IoT) integration. The AP61 works in conjunction with the Juniper Mist Cloud Architecture driven by Mist AI to collect and analyze metadata in near real-time from all wireless clients. This enables rapid problem detection and root cause identification with predictive recommendations and proactive correction, realizing the self-driving networks. The AP61 has a dynamic vBLE 16-element antenna array for the industry’s most accurate and scalable location services, including User Engagement, Asset Visibility, and Contact Tracing applications. This is achieved without the need for battery-powered BLE beacons and manual calibration.

Juniper AI-Driven Network

Juniper brings true innovation to the wireless space with the world’s first AI-driven wireless LAN (WLAN).

The Juniper AI-Driven Enterprise makes Wi-Fi predictable, reliable, and measurable with unprecedented visibility into the user experience through customizable service level expectation (SLE) metrics. Time-consuming manual IT tasks are replaced with AI-driven proactive automation and self-healing, lowering Wi-Fi operational costs and saving substantial time and money.

All operations are managed via our open and programmable microservices architecture, which delivers maximum scalability and performance while also bringing DevOps agility to wireless networking and location services.

The Juniper Mist Cloud Architecture

Juniper’s Mist AI leverages a cloud-native microservices architecture that delivers unparalleled agility, scale, and resiliency to your network. An AI engine lowers OpEx and delivers insights by using data science to analyze large amounts of rich metadata collected from Juniper Access Points.

Juniper Mist Edge

Juniper Mist Edge is an on-premises appliance that runs a tunnel termination service. Juniper APs offer a flexible data plane. Traffic can be broken out locally, or tunneled to Juniper Mist Edge. There are many use cases the Juniper Mist Edge solves, including seamless mobility in large campus environments, tunneling of guest traffic to a DMZ, IoT segmentation, and teleworker.

Features:

High Performance Outdoor Wi-Fi Access

The AP61 delivers high-performance wireless access with three 802.11ac Wave 2 radios that deliver up to 1,730 Mbps in the 5GHz band and up to 800 Mbps in the 2.4GHz band. Whether you want to extend your users’ experiences outside the four walls or you want to set up pervasive outdoor wireless with mesh backhaul, the AP61 delivers the best performance with the simplest operations in an industrial-grade form factor.

Unprecedented Insight and Action

A dedicated dual-band radio collects data for Juniper’s patent-pending Proactive Analytics and Correlation Engine (PACE), which leverages machine learning to analyze user experiences, correlate problems, and automatically detect the root cause of problems. These metrics are used to monitor service-level expectations (SLEs) and provide proactive recommendations to ensure problems don’t occur (or are fixed as quickly as possible when they do).

Automatic RF optimization

The AP61’s dual-band scanning mode continuously scans the airspace for threats and interference. This ensures optimal performance under what could otherwise be challenging RF conditions. The AP61’s dual-band sensor continuously scans the airspace for threats and interference.

Dynamic Packet Capture

The Juniper Mist platform automatically captures packets and streams them to the cloud when major issues are detected. This saves IT time and effort and eliminates the need for truck rolls with sniffers.

Marvis Virtual Conversational Assistant

Marvis is a natural language processing (NLP)-based assistant with a Conversational Interface to understand user intent and goals, simplifying troubleshooting and the collection of network insights. It uses AI and data science to proactively identify issues, determine the root causes and scope of impact, and gain insights into your network and user experiences. It eliminates the need to manually hunt through endless dashboards and CLI commands.

Effortless, Cloud-Based Setup and Updates

The AP61 automatically connects to the Juniper Mist cloud, downloads its configuration, and joins the appropriate network. Firmware updates are retrieved and installed automatically, ensuring that the network is always up to date with new features, bug fixes, and security updates.

Premium Analytics

Juniper Mist’s Wireless Assurance, User Engagement and Asset Visibility service includes a base analytics capability for analyzing up to 30 days of data, from which you can extract network insights across your enterprise. To extend these capabilities for more dynamic insights like motion paths and other third-party data, along with the option to generate customized reports, the Juniper Mist Premium Analytics service is available as an additional subscription.

Dynamic Debugging

Constantly monitor services running on the AP61 and send alerts whenever a service behaves abnormally. Dynamic debugging relieves IT of having to worry about an AP going offline or any services running on it becoming unavailable.

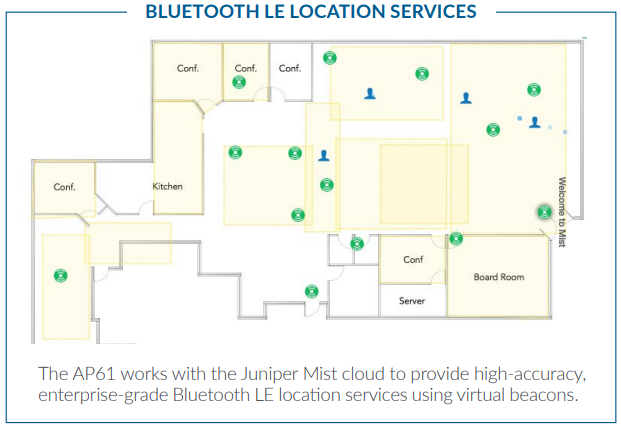

High-Accuracy Indoor Location

The AP61 has a 16-element Virtual Bluetooth LE (vBLE) antenna array controlled from the Juniper Mist cloud. Passive antennas enhance the power of a single transmitter and produce directional beams to accurately detect distance and location with 1 to 3 meter accuracy. With Juniper’s patented vBLE technology, you can deploy an unlimited number of virtual beacons in your physical environment without requiring battery-powered BLE beacons.

Patented VBLE Technology

In addition to the industry-leading Wi-Fi technology at the heart of the AP43 access point, our second-generation, patented, and dynamic, 16-element virtual Bluetooth LE (vBLE) antenna array combines with machine learning to eliminate the need for battery-powered beacons. This maximizes scalability and optimizes your deployment investment in location-based services. vBLE enables businesses to provide rich location-based experiences that are engaging, accurate, real-time, and scalable.

Specifications:

AP61 Access Point Specifications
Wi-Fi Standard 802.11ac Wave 2
Combined Highest Supported Data Rates 2.5 Gbps
2.4 GHz 4x4:4 802.11b/g/n/ac up to 800 Mbps data rate. 802.11ac for VHT-capable proprietary clients
5 GHz 4x4:4 802.11a/n/ac Wave 2 up to 1,733 Mbps data rate
MIMO MU-MIMO (Multi-User)
SU-MIMO (Single-User)
Dedicated Third Radio 2.4GHz and 5GHz dual-band WIDS/WIPS, spectrum analysis and location analytics radio
Antenna Options Internal and External
Bluetooth 16 directional antenna + 1 omni antenna
Beam Forming Transmit Beamforming and Maximal Ratio Combining
Power Options 802.3at PoE
Dimensions 310mm x 310mm x 107mm (12.2in x 12.2in x 4.3in)
Weight Internal Antenna - 4.309 kg (9.5 lbs)
External Antenna – 4.5 35 kg (10 lbs)
Operating Temperature -20° to 65° C; no solar loading
-20° to 55° C; with solar loading
Operating Humidity 10% to 90% maximum relative humidity, noncondensing
Operating Altitude 3,048 m (10,000 ft)
Enclosure IP67 / NEMA 4 compliant
Electromagnetic Emissions FCC Part 15 Class B
I/O One 10/100/1000BASE-T auto-sensing RJ-45 with PoE
One 10/100/1000BASE-T auto-sensing RJ-45
Indicators Multi-color status LED
Compliance Standards UL 60950-1
CAN/CSAC22.2
No. 60950-1
FCC Part 15.247, 15.407, 15.107, and 15.109
RSS247
ICES003 (Canada)
Certification Class 1, Division 2 for hazardous locations
I/O Ports and Accessories
Ethernet0+PoE 10/100/1000 BaseT RJ45 interface that supports 802.3at PoE
Ethernet1 10/100/1000 BaseT RJ45 interfac
Reset Reset to the factory default settings
Brackets Vertical, tilt and horizontal mounting kit included
Kensington Lock No

Services Available for the Juniper AP61


Wi-Fi Cloud Services

  • Juniper Mist Wi-Fi Assurance
    • For IT and NOC Teams
      • Predictable and Measurable Wi-Fi
      • Service Level Expectation (SLE) Support
      • WxLAN Policy Fabric for Role-Based Access
      • Customizable Guest Wi-Fi Portal
      • AI-Driven Radio Resource Management
  • Marvis Virtual Assistant
    • For IT Helpdesk Teams
      • AI-Powered Virtual Network Assistant
      • Natural Language Processing Conversational Interface
      • Anomaly Detection
      • Client SLE Visibility and Enforcement
      • Data Science-Driven Root-Cause Analysis

Bluetooth Cloud Services

  • Juniper Mist Mobile Engagement
    • For Digital Experience Teams
      • Accurate (1-3m) Turn-by-Turn Navigation
      • Sensor Fusion with Dead Reckoning
      • Unsupervised Machine Learning
      • Virtual Beacons with Custom Notifications
      • Mobile SDK for iOS and Android
  • Juniper Mist Asset Visibility
    • For Process and Resource Improvement Teams
      • Identification of Assets by Name and View Location
      • Zonal/Room Accuracy for Third-Party Tags
      • Historical Analytics for Asset Tags
      • Telemetry for Asset Tags (temperature, motion, and other data)
      • APIs for Viewing Assets and Analytics

Analytics Cloud Services

  • Juniper Mist Premium Analytics
    • For Network Teams
      • Baseline Analytics Features Come Included with Wi-Fi Assurance, Mobile Engagement, and Asset Visibility Subscriptions
      • End-to-End Network Visibility
      • Orchestrated Networking and Application Performance Queries
      • Simplified Network Transparency
    • For Business Teams
      • Baseline Analytics Features Come Included with Wi-Fi Assurance, Mobile Engagement, and Asset Visibility Subscriptions
      • Customer Segmentation and Reporting Based on Visitor Telemetry
      • Customized* Dwell and Third-Party Reporting for Traffic and Trend Analysis
      • Correlation of Customer-Guest Traffic and Trend Analysis

*Based on Telcordia SR-332 issue 3, Method I, Case 3 and measured at temperature of 25°C (77°F) for indoor access points, and 65°C (149°F) for outdoor access points.

Compare:


  AP61 AP43 AP41 AP21 BT11
Deployment Outdoor Indoor Indoor Indoor Indoor
Wi-Fi Standard 802.11ac Wave2 4x4 : 4 802.11ax (Wi-Fi 6 ) 4x4 : 4SS 802.11ac Wave2 4x4 : 4 802.11ac Wave2 2x2 : 2
Wi-Fi Radios Dedicated third radio Dedicated third radio Dedicated third radio
Antenna Options Internal/External Internal/External Internal/External Internal Internal
Virtual BLE
IoT Interface
IoT Sensors Humidity,
Pressure,
Temperature
Warranty One Year Limited Lifetime Limited Lifetime Limited Lifetime Limited Lifetime
Frequencies Supported 2.4GHz
5GHz
2.4GHz
5GHz
6GHz
2.4GHz
5GHz
2.4GHz
5GHz
2.4GHz
5GHz

Views:

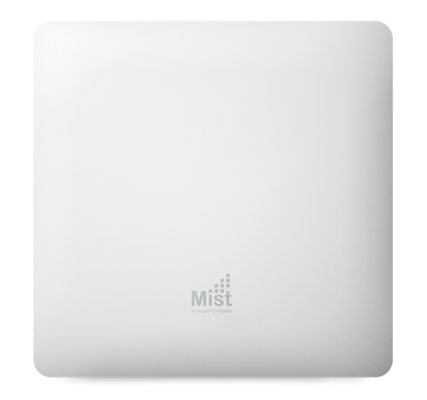

Top View
Top View

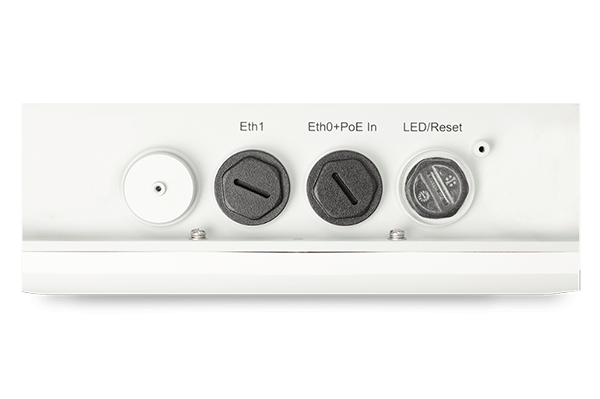

Ports View

Ports View

Documentation:

Download the Juniper AP61 Access Point Datasheet (PDF).
